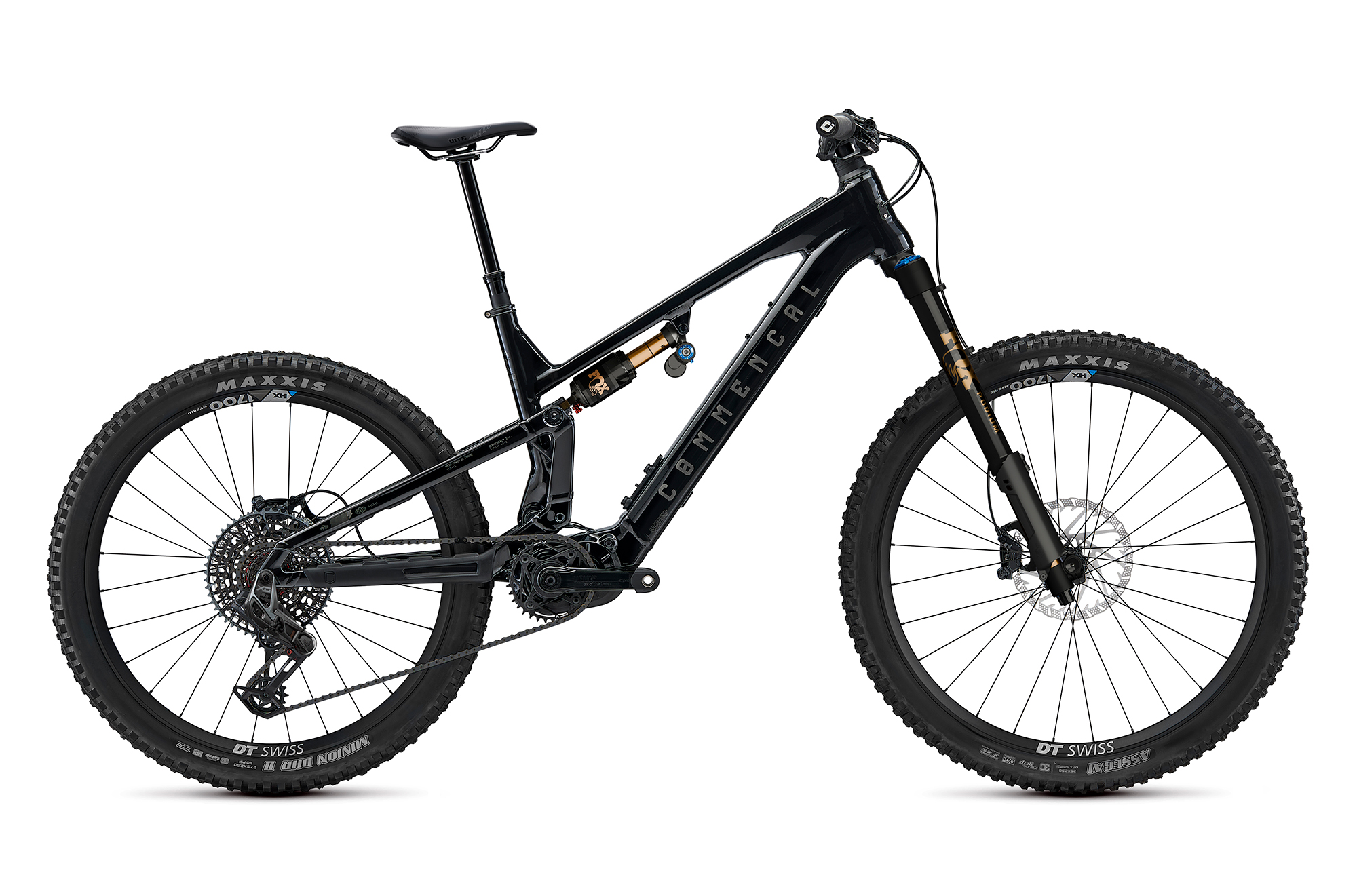

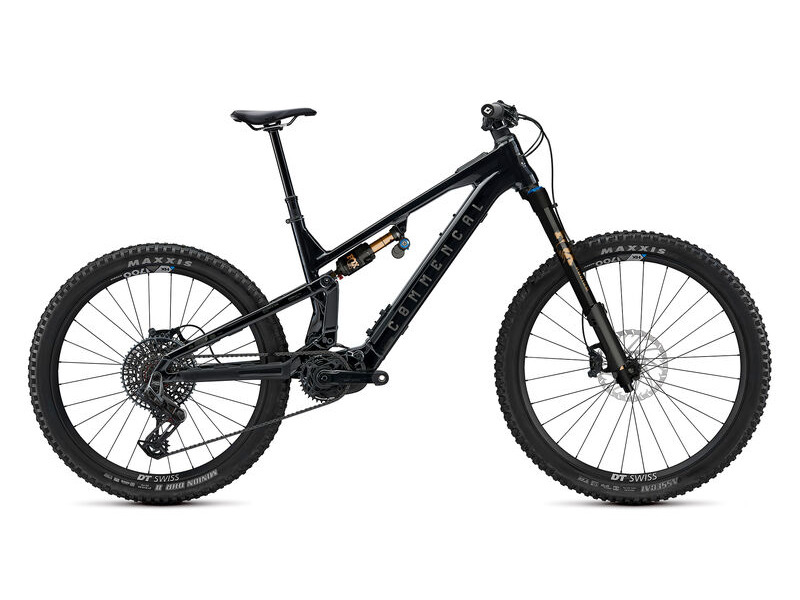

Commencal Meta Power SX Avinox Podium Pure Black

The META POWER SX AVINOX PODIUM is an exclusive, top-of-the-range build featuring a FOX Podium Factory fork and an electronic SRAM XO Eagle T-Type drivetrain.

- The inverted FOX Podium Factory fork with 160mm travel offers structural stiffness close to that of a FOX Factory 40. Although designed without a linkage bridge, its 47mm stanchions and 20mm steel axle provide an optimised weight/stiffness ratio. For perfect harmony, we chose the Float X Factory X2 rear shock, offering the perfect balance between grip and comfort.
- Braking is handled by SHIMANO with a pair of Deore XT 4-piston brakes. With a true feel, performance is consistent thanks to the 203mm rotors.
- DT SWISS HX 1700 wheels are paired with DT SWISS 370 hubs. This combo is ready to take the hits.
- Reliable and responsive, the SRAM XO Eagle T-Type drivetrain is ideal for e-MTB riding. Robust and versatile, it adapts to any situation.

specifications
Frame
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

Motor
AVINOX
120- Nm peak torque with a 1,000- W boost mode, and 105- Nm / 850- ?W in normal operation

Battery
AVINOX
600 W on S, 800 W on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger

Display
AVINOX BD100, ON/OFF switch, assist mode level, battery charge level
Switch: AVINOX BC100, mode switch, walk assist, light switch

Shock
FOX Float X2 Factory
230 x 60 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR

Fork
FOX PODIUM Factory 160 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (20 x 110 mm), 44 mm offset

Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings

Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips
ODI LONGNECK V2.1
Soft compound, single clamp, black

Brakes
SHIMANO XT, 4 pistons
Rotors: GALFER SHARK, 6-bolt, 203 mm

Shifters
SRAM AXS POD
12s

Chain guide
RIDE ALPHA
32t-34t

REAR DERAILLEUR
SRAM X0 EAGLE T-TYPE
12s, T-TYPE

Crankset
E13 HELIX RACE, 155 mm crank arms
Chainring: SRAM CR T-TYPE, 34t, BCD 104

Chain
SRAM X0 EAGLE T-TYPE
12s, Flat Top

Cassette
SRAM X0 EAGLE T-TYPE
12s, 10-52t

Rims
DT SWISS HX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

Hubs
DT SWISS 350 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 20 x 110 mm

Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

Tyres
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27.5x2.50WT 3C MaxxGrip / Double Down Casing / TR - Front: 29x2.50WT 3C MaxxGrip / Double Down Casing / TR

Seat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL

Saddle
WTB SOLANO
142 x 240 mm, Medium

Weight
- kg / - lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included
CRANKBROTHERS Stamp 1

Colour
Pure Black
Shiny Finish

Accessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 specific fender, FIDLOCK base, diameter reducer 34,9mm
