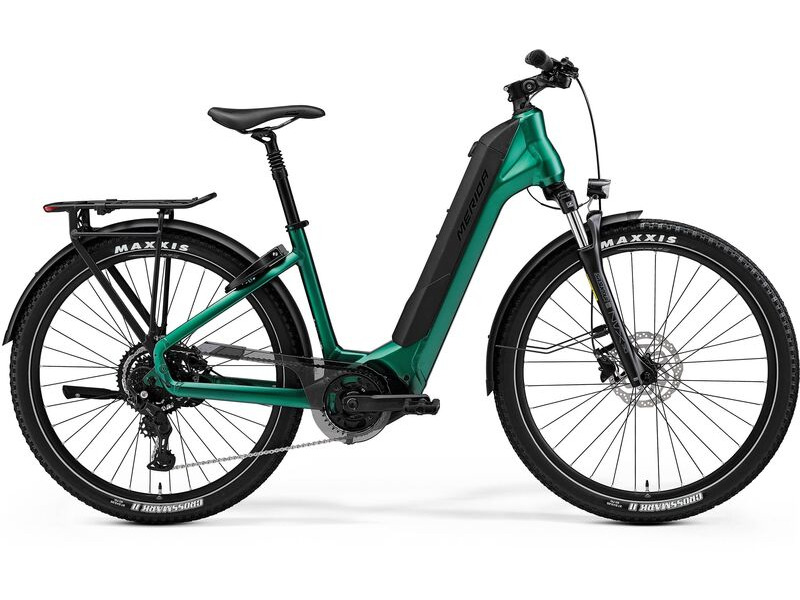

Merida eSpresso CC 400 EQ - Green/Black - MY24 2024

The eSpresso CC is a low step-through, fully equipped eBike for commuting and leisure riding. More rugged than an eSpresso City due to wider tyres and 650b wheels. Powered by a Shimano EP6 85Nm motor with powerful 504Wh battery

Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun.

All eSpresso CC models are equipped with a refined, powerful Shimano STEPS pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking.

- New, powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design with internally mounted 504 Wh battery
- Smooth Shimano 9-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand


SPECIFICATION -

FRAME - CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25"
MOTOR - Shimano Steps EP6; 85Nm
BATTERY - Shimano EN805-L; 504Wh internal battery
BATTERY CAPACITY - 504Wh
EBIKE DISPLAY - Shimano SC-EN500
CHARGER - Shimano EC-E6002; 2A Charging current
POWER BUTTON - CAP-045A, Merida Power Button
FORK - Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size 27.5" x 2.4"
GEARS - 9
SHIFTERS - Shimano CUES U4000
REAR DERAILLEUR - Shimano CUES U4000
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
CASSETTE - Shimano LG300; 11-46 teeth; 9 speed
BRAKE LEVER - Shimano MT200
FRONT BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE - Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
GRIP - Merida Expert TK
HANDLEBAR - Merida Expert; aluminium; 660mm wide; 15mm rise
STEM - Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET - Merida-8254
PEDAL - VP Components - VPE-891
SADDLE - Merida Expert TK II; V-mount
SEAT POST - JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
WHEEL SIZE - 27.5"
RIMS - Merida Comp TK; 20mm inner rim width; aluminium
SPOKES - Black stainless
FRONT HUB - Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
REAR HUB - Shimano QC300; 135 x 9mm; 36 spokes; Centerlock
FRONT TYRE - Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
REAR TYRE - Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
FRONT LIGHT - Hermans H-Black MR4 E, LED front light - 120 Lumens
REAR LIGHT - Spanninga Commuter Glow XE integrated rear light
OTHER - Complete with: Mudguards, kickstand, Abus frame lock and Merida MIK HD Carrier with Spring clip, elastic strap & Spanninga rear light.
