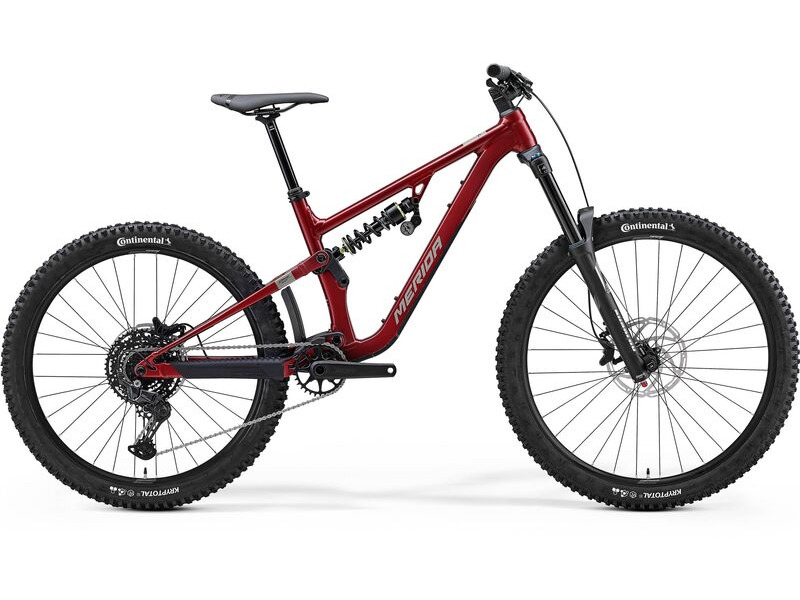

Merida One Sixty FR - 400 2024

Merida One Sixty FR - 400 click to zoom image
Pricing
£2795.00
Offer £2464.00
Finance* from £221.76 per month

*subject to status, minimum spend applies

Hover mouse for full example.
How long will delivery take
How much does delivery cost
Price Match
The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year. Of the One-Sixty 6000 they said: "it was the Merida's proportions, supportive suspension and electrifying ride feel that finally clinched it."The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner."Totally planted, thoroughly sorted and outrageously capable. Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear. The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course. The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty. The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,

SPECIFICATION

FRAME
Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"

SHOCK
DVO Jade X D3; coil

FORK
SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6"

GEARS
10

SHIFTERS
Shimano SL-MT500-IL dropper lever and Shimano CUES U6000

REAR DERAILLEUR
Shimano CUES U6000; GS

CHAIN
Shimano LG500

CHAINSET
Merida Expert TR; 32 tooth chainset; crank length 170mm all sizes with Merida Expert TR ISCG05 chainguide

CASSETTE
Shimano LG300; 11-48 teeth; 10 speed

BRAKE LEVER
Tektro Gemini M535

FRONT BRAKE
Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor

REAR BRAKE
Tektro Gemini M535 4 piston hydraulic disc brake with Tektro TR203-45 203mm rotor

GRIP
Merida Expert EC

HANDLEBAR
Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise

STEM
Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes

HEAD SET
Acros ICR Merida external neck; Upper and lower IPS sealing

SADDLE
Merida Comp SL with V-mount

SEAT POST
Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel

WHEEL SIZE
29" / 27.5"

RIMS
Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

SPOKES
Double Butted Black stainless

FRONT HUB
Shimano TC500-B; 110x15mm; 32 spokes; Centerlock

REAR HUB
Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key

FRONT TYRE
Continental Kryptotal-F; 29" x 2.4"; Kevlar bead, folding; TR; Enduro casing; Soft Compund

REAR TYRE
Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead, folding; TR; Enduro Casing; Soft Compound

COLOUR
Red/Grey/Black
SEASON
2024


Geometry



Geometry
Model Year 2024
Options S (Warehouse Stock Allow 3-6 Days For Delivery) Red / Grey / Black Available
Mid (Warehouse Stock Allow 3-6 Days For Delivery) Red / Grey / Black Available
Long (Warehouse Stock Allow 3-6 Days For Delivery) Red / Grey / Black Available
X Long (Warehouse Stock Allow 3-6 Days For Deliver Red / Grey / Black Available
Wheel Size 297
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
