Merida e0ne Eighty 900 2025
Pricing
£7495.00
Finance* from £674.55 per month*subject to status, minimum spend applies
Hover mouse for full example.
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take?
- Price Match
- Can I trade in my Current E-bike towards a new one
- Aluminium frame with 180mm travel, front and rear
- Bosch Performance Line CX Motor and PowerTube 800Wh battery; removable for charging
- 250Wh PowerMode range extender available separately
- RockShox Zeb Ultimate fork and Vivid Ultimate air shock
- Shimano XT Linkglide 11 speed and 4-piston brakes
- DT Swiss HF1700 wheelset; mullet setup
- Long travel aluminium frame; Bosch Performance Line CX Motor and removable 800Wh battery. A 250Wh range extender is available separately. RockShox Zeb Ultimate fork and Vivid Ultimate air shock, Shimano XT Linkglide 11 speed plus 4-piston brakes and a DT Swiss mullet wheelset complete the line up. 5 year frame warranty (category 5).
The eOne-Eighty 900 combines our hard hitting 180mm travel aluminium frame with a powerful Bosch CX drive unit, an 800Wh battery and some top notch kit. The RockShox Zeb Ultimate fork and Vivid Air rear shock are capable of chewing through rock gardens leaving you hungry for more and the proven DT Swiss HX 1700 wheelset will shrug off hits all day long. Running a mullet set up means this bike has the agility to dance as well as destroy; our Agilometer system allows you to choose your size according to your riding style. The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It's ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800Wh battery and Bosch CX power. It's our longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes. It's also our first e-MTB to use the Bosch Performance Line CX drive unit, offering powerful assistance with 85Nm on tap. There's a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride. It's rated Category 5 (bike park and downhill approved), so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty. Approx overall weight 26kg
Frame
LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5 x 2,6
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 800; 800Wh
Battery Capacity
800Wh
eBike Display
Bosch Purion 400
Mode Switch
Bosch Mini Remote
Shock
Rock Shox Vivid Ultimate
Fork
Rockshox Zeb Ultimate eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size
Gears
11
Shifters
Shimano XT
Rear Derailleur
Shimano XT LG
Chain
Shimano LG500
Chainset
FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
Cassette
Shimano LG400; 11-50 teeth; 11 speed
Brake Lever
Shimano XT
Front Brake
Shimano XT; 4 piston hydraulic disc brake with Shimano RT64, 220mm rotor
Rear Brake
Shimano XT; 4 piston hydraulic disc brake with Shimano RT64, 200mm rotor
Grip
Merida Expert EC
Handlebar
Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise
Stem
Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes
Head Set
Acros ICR Merida external neck with Blocklock
Pedal
VP VP-532
Saddle
PROXIM Nembo Triox; V-mount adapter; incl. Merida minitool
Seat Post
Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230mm travel
Wheel Size
29" / 27.5"
Rims
Part of wheelset - DT Swiss HF 1700; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5"
Front Hub
Part of wheelset - DT Swiss HF 1700; 110x15mm; 6-Bolt; aluminium
Rear Hub
Part of wheelset - DT Swiss HF 1700; 148x12mm; 6-Bolt; Shimano HG; aluminium with Merida Expert TR axle; including removeable lever, 6/4mm allen key
Front Tyre
Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip
Rear Tyre
Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra
Colour
Glossy Anaconda Green
Season
2025
Front Light
Lezyne Fusion StVZO E500
Rear Light
USB REAR Light CG-214RG
- Bosch Performance Line CX Motor and PowerTube 800Wh battery; removable for charging
- 250Wh PowerMode range extender available separately
- RockShox Zeb Ultimate fork and Vivid Ultimate air shock
- Shimano XT Linkglide 11 speed and 4-piston brakes
- DT Swiss HF1700 wheelset; mullet setup
- Long travel aluminium frame; Bosch Performance Line CX Motor and removable 800Wh battery. A 250Wh range extender is available separately. RockShox Zeb Ultimate fork and Vivid Ultimate air shock, Shimano XT Linkglide 11 speed plus 4-piston brakes and a DT Swiss mullet wheelset complete the line up. 5 year frame warranty (category 5).
The eOne-Eighty 900 combines our hard hitting 180mm travel aluminium frame with a powerful Bosch CX drive unit, an 800Wh battery and some top notch kit. The RockShox Zeb Ultimate fork and Vivid Air rear shock are capable of chewing through rock gardens leaving you hungry for more and the proven DT Swiss HX 1700 wheelset will shrug off hits all day long. Running a mullet set up means this bike has the agility to dance as well as destroy; our Agilometer system allows you to choose your size according to your riding style. The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It's ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800Wh battery and Bosch CX power. It's our longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes. It's also our first e-MTB to use the Bosch Performance Line CX drive unit, offering powerful assistance with 85Nm on tap. There's a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride. It's rated Category 5 (bike park and downhill approved), so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty. Approx overall weight 26kg
Frame
LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5 x 2,6
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 800; 800Wh
Battery Capacity
800Wh
eBike Display
Bosch Purion 400
Mode Switch
Bosch Mini Remote
Shock
Rock Shox Vivid Ultimate
Fork
Rockshox Zeb Ultimate eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size
Gears
11
Shifters
Shimano XT
Rear Derailleur
Shimano XT LG
Chain
Shimano LG500
Chainset
FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
Cassette
Shimano LG400; 11-50 teeth; 11 speed
Brake Lever
Shimano XT
Front Brake
Shimano XT; 4 piston hydraulic disc brake with Shimano RT64, 220mm rotor
Rear Brake
Shimano XT; 4 piston hydraulic disc brake with Shimano RT64, 200mm rotor
Grip
Merida Expert EC
Handlebar
Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise
Stem
Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes
Head Set
Acros ICR Merida external neck with Blocklock
Pedal
VP VP-532
Saddle
PROXIM Nembo Triox; V-mount adapter; incl. Merida minitool
Seat Post
Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230mm travel
Wheel Size
29" / 27.5"
Rims
Part of wheelset - DT Swiss HF 1700; 30mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves included); front 29"; rear 27.5"
Front Hub
Part of wheelset - DT Swiss HF 1700; 110x15mm; 6-Bolt; aluminium
Rear Hub
Part of wheelset - DT Swiss HF 1700; 148x12mm; 6-Bolt; Shimano HG; aluminium with Merida Expert TR axle; including removeable lever, 6/4mm allen key
Front Tyre
Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip
Rear Tyre
Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra
Colour
Glossy Anaconda Green
Season
2025
Front Light
Lezyne Fusion StVZO E500
Rear Light
USB REAR Light CG-214RG

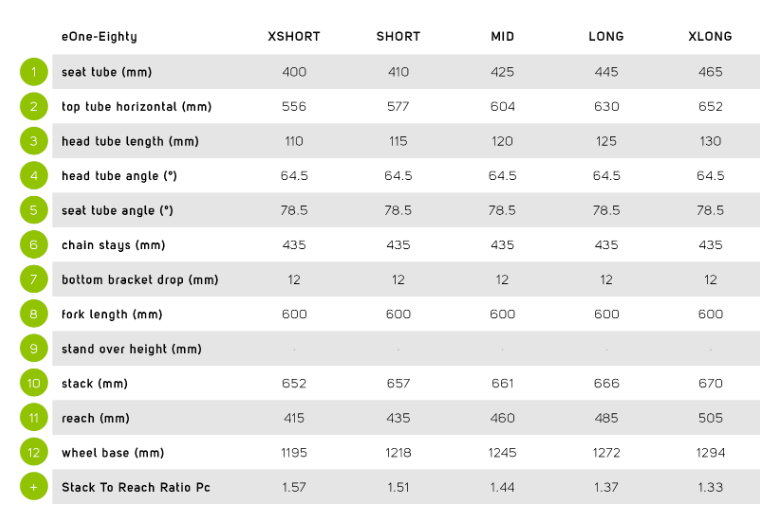

Geometry
| Model Year | 2025 |
|---|---|
| Options | XS (Email to pre order) Green S (Email to pre order) Green M (Email to pre order) Green L (Email to pre order) Green XL (Email to pre order) Green |
| Wheel Size | 297 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
