Merida Reacto 4000 - Blue/Silver 2024

Merida Reacto 4000 - Blue/Silver click to zoom image
Pricing
£2300.00
Finance* from £207.00 per month

*subject to status, minimum spend applies

Hover mouse for full example.
Want 11% Off Merida? Use MERIDA11 at checkout
How long will delivery take and what will it cost?
Price Match
Can I trade in my Current E-bike towards a new one

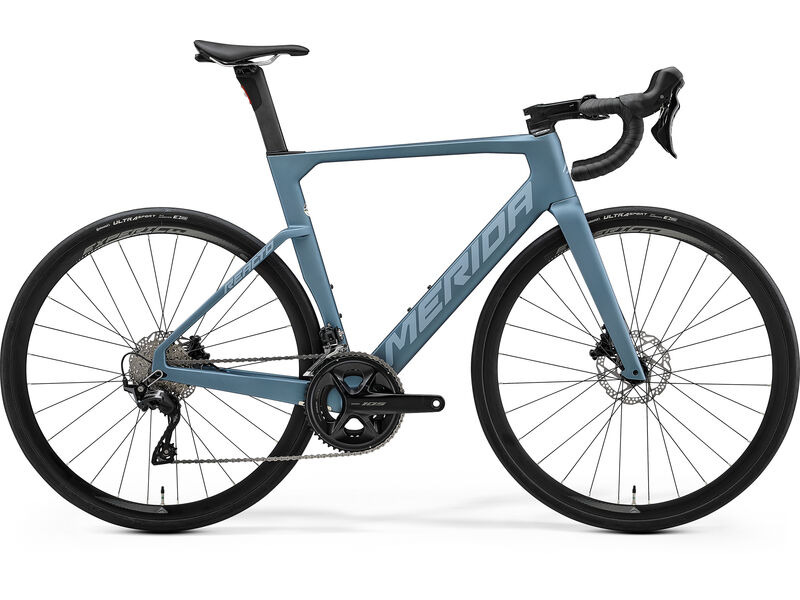

Merida Reacto 4000 Road Bike






Entry level carbon aero bike with race proven ProTour geometry equipped with Shimano 105 12 speed groupset and hydraulic disc brakes.
The Merida Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort. The 4th generation model is more slippery and beautiful than ever, incorporating wider tyres, much neater cockpit cable integration and a series of incremental improvements to boost performance. In the world of Pro-Tour racing no area can be ignored. Computational Fluid Dynamics (CFD) calculations were used to model performance in a virtual wind tunnel, guiding the changes which offered the most aerodynamic benefit: Prototypes were wind tunnel tested following the German TOUR magazine standard, including the 'moving leg dummy' test. The Reacto CF5 needs just 209 watts effort for 45 km/h speed, 1 watt faster than its predecessor so it's in the leading group of aero road bikes ever tested by TOUR magazine. Small details such as integrating the front disc cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance. A myriad of small improvements over-compensate for the aerodynamic compromises made to give the Reacto bigger tyres, resulting in the perfect package of comfort, aerodynamic, lightweight and style. A long string of test wins, perfect scores and awards confirm the successful evolution of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. All Reacto come with powerful hydraulic disc brakes. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.






Bike Specification



FRAME
CF3 IV - carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, Disc Cooler, BB86 BB standard, 142 x 12mm axle standard. Max tyre clearance 700 x 30c

FORK - Reacto CF3 IV Disc; full carbon, tapered steerer. Max tyre size: 700 x 30c. Disc cooler technology

GEARS - 24

SHIFTERS - Shimano 105 disc

FRONT DERAILLEUR - Shimano 105

REAR DERAILLEUR - Shimano 105; GS

BOTTOM BRACKET - Shimano BB71-41B, Pressfit 86.5

CHAIN - Shimano CN-M6100-12

CHAINSET - Shimano 105; FCR7100, 52-36 tooth chainset. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL)

CASSETTE - Shimano CS-R7101; 11-34 teeth; 12 speed

BRAKE LEVER - Shimano 105

FRONT BRAKE - Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor

REAR BRAKE - Shimano 105 hydraulic disc brake caliper with Shimano RT54 160mm rotor

GRIP - Merida ROAD Expert

HANDLEBAR - Merida Expert CW; aluminium; Width 380mm (XXS), 400mm (XS), 420mm (S,M,L), 440mm (XL)

STEM - FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL)

HEAD SET - FSA ACR

PEDAL - Not included

SADDLE - Merida Expert SL with V-mount; including Merida minitool

SEAT POST - Merida Team CW; Aero shape; 15mm lay back; Carbon with integrated rear light

WHEEL SIZE - 700c

RIMS - Merida Expert CW; 19mm inner rim width; 30mm rim depth

SPOKES - Double Butted Black stainless

FRONT HUB - Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Expert TR axle

REAR HUB - Joytech D872SB; 142x12mm; 28 spokes; Centerlock with Merida Expert SL axle including removable 6/4mm allen key

FRONT TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead, folding

REAR TYRE - Continental Ultra Sport III; 700 x 28C; Kevlar bead, folding

COLOUR - Blue/Silver

SEASON - 2024



Specifications are subject to change without notice.




Geometry



Merida reacto road bike




Model Year 2024
Options XS (Warehouse Stock Allow 3-5 Days For Delivery) Blue Silver Available
S (Warehouse Stock Allow 3-5 Days For Delivery) Blue Silver Available
M (Warehouse Stock Allow 3-5 Days For Delivery) Blue Silver Available
L (Warehouse Stock Allow 3-5 Days For Delivery) Blue Silver Available
XL (Warehouse Stock Allow 3-5 Days For Delivery) Blue Silver Available
Wheel Size 700c
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
