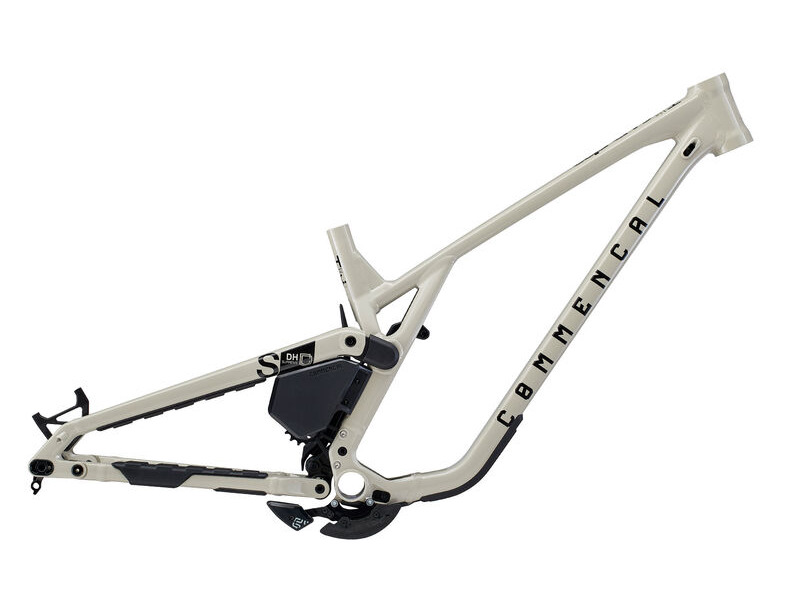

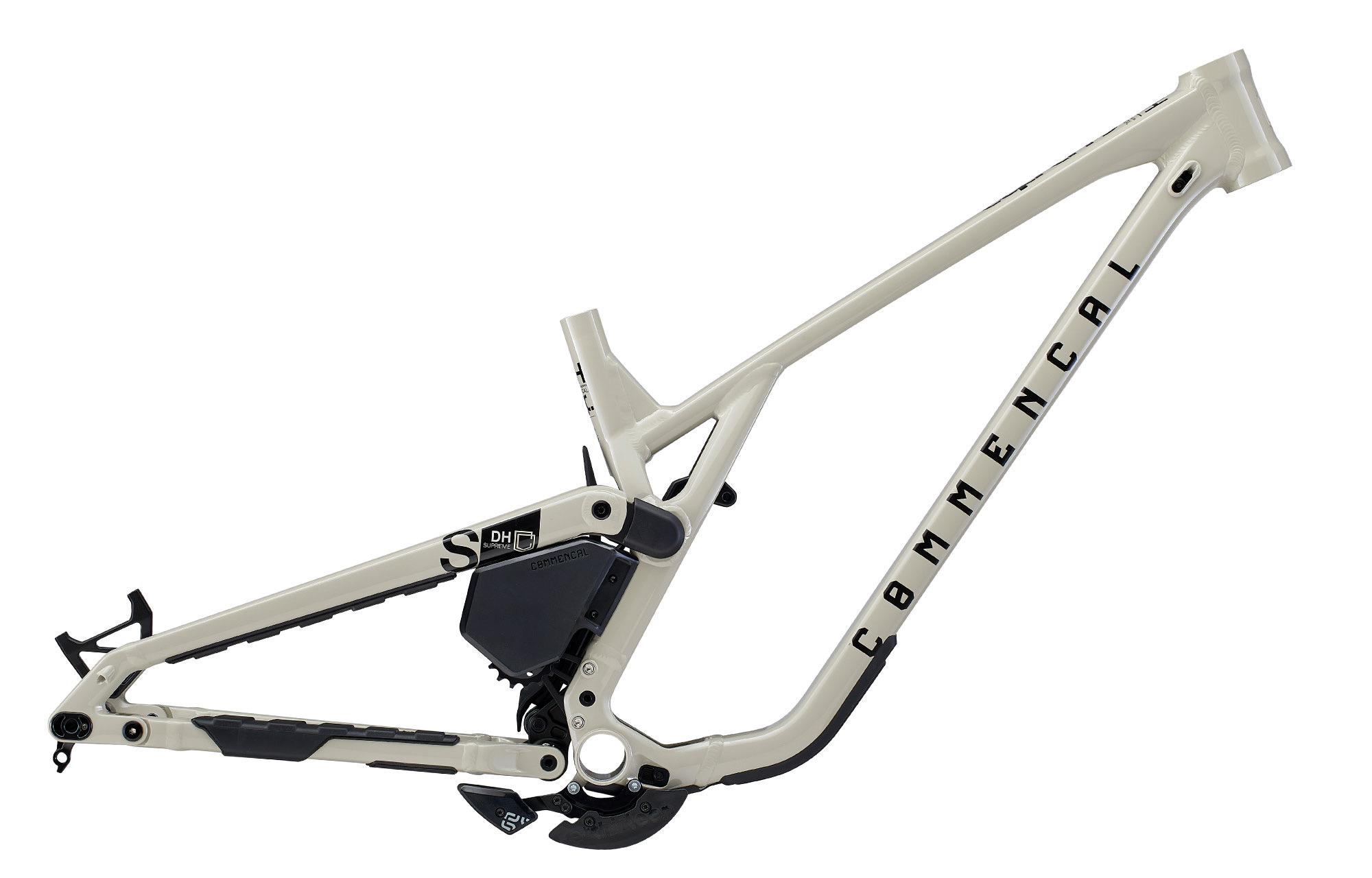

Commencal Supreme DH V5 Frame Chalk White
The SUPREME DH V5 is our pure race machine. It is the result of three years of work between our R&D department and our athletes. From the bike's very first season racing World Cups, the results have been the best advertisement: 9 wins, 27 podiums and a first place in the Elite Women, Men and Team rankings.
With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Accessories
Down tube protector, chainstay protector, seatstay protector, rear wheel axle, chainguide, frame mudguard, roller cover, rear brake adaptor, rear hanger
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
Hub Old
157 x 12
Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)
Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Accessories
Down tube protector, chainstay protector, seatstay protector, rear wheel axle, chainguide, frame mudguard, roller cover, rear brake adaptor, rear hanger
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
Hub Old
157 x 12
Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)
Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
| Options | S / Allow 1-3 weeks for delivery Available M / Allow 1-3 weeks for delivery Available L / Allow 1-3 weeks for delivery Available |
|---|
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
