Merida e0ne Sixty 10k Electric Mountainbike 2024

Merida e0ne Sixty 10k Electric Mountainbike click to zoom image
Pricing
£10495.00
Finance* from £944.55 per month

*subject to status, minimum spend applies

Hover mouse for full example.
Want 11% Off Merida? Use MERIDA11 at checkout
How long will delivery take?
Price Match
Can I trade in my Current E-bike towards a new one

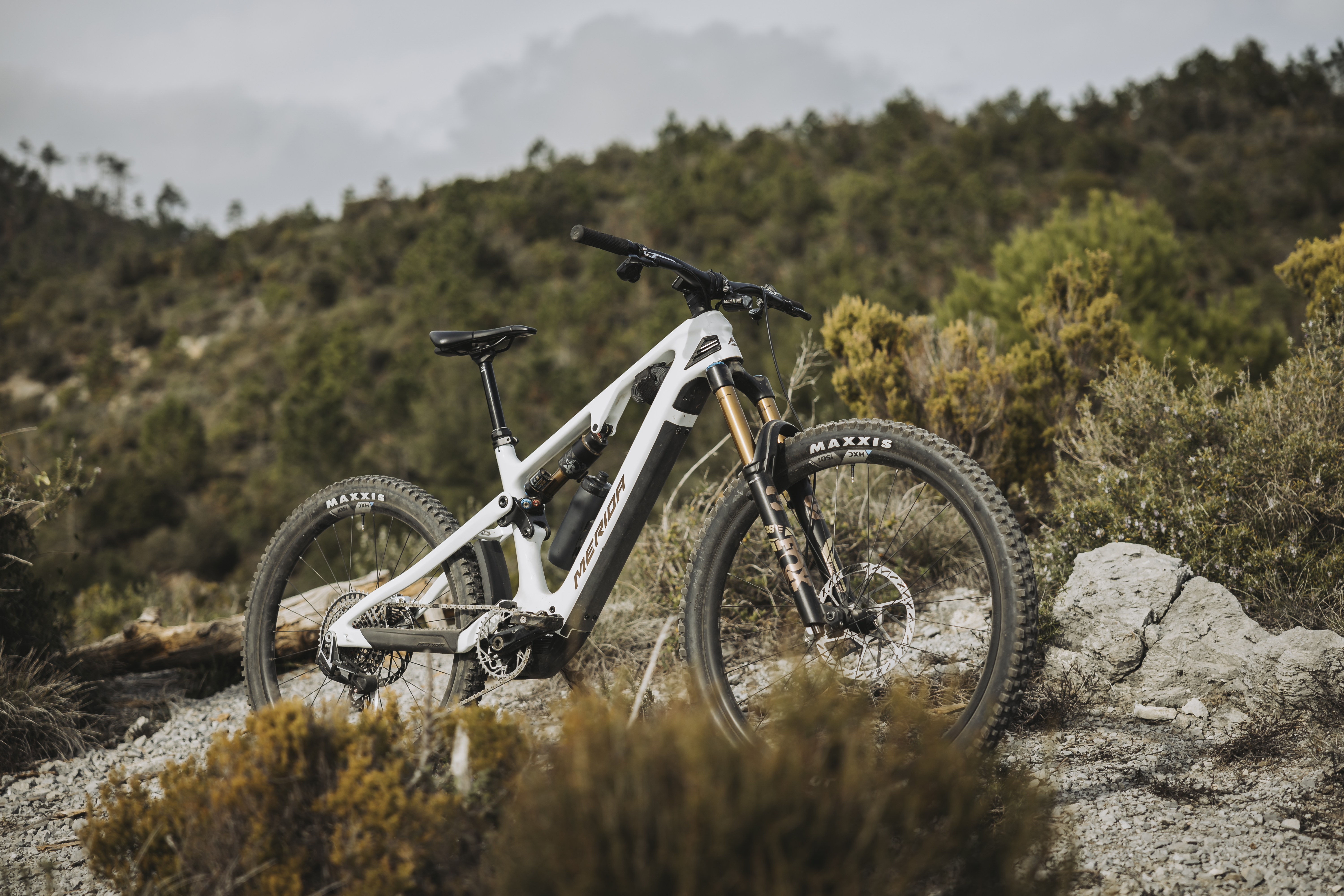

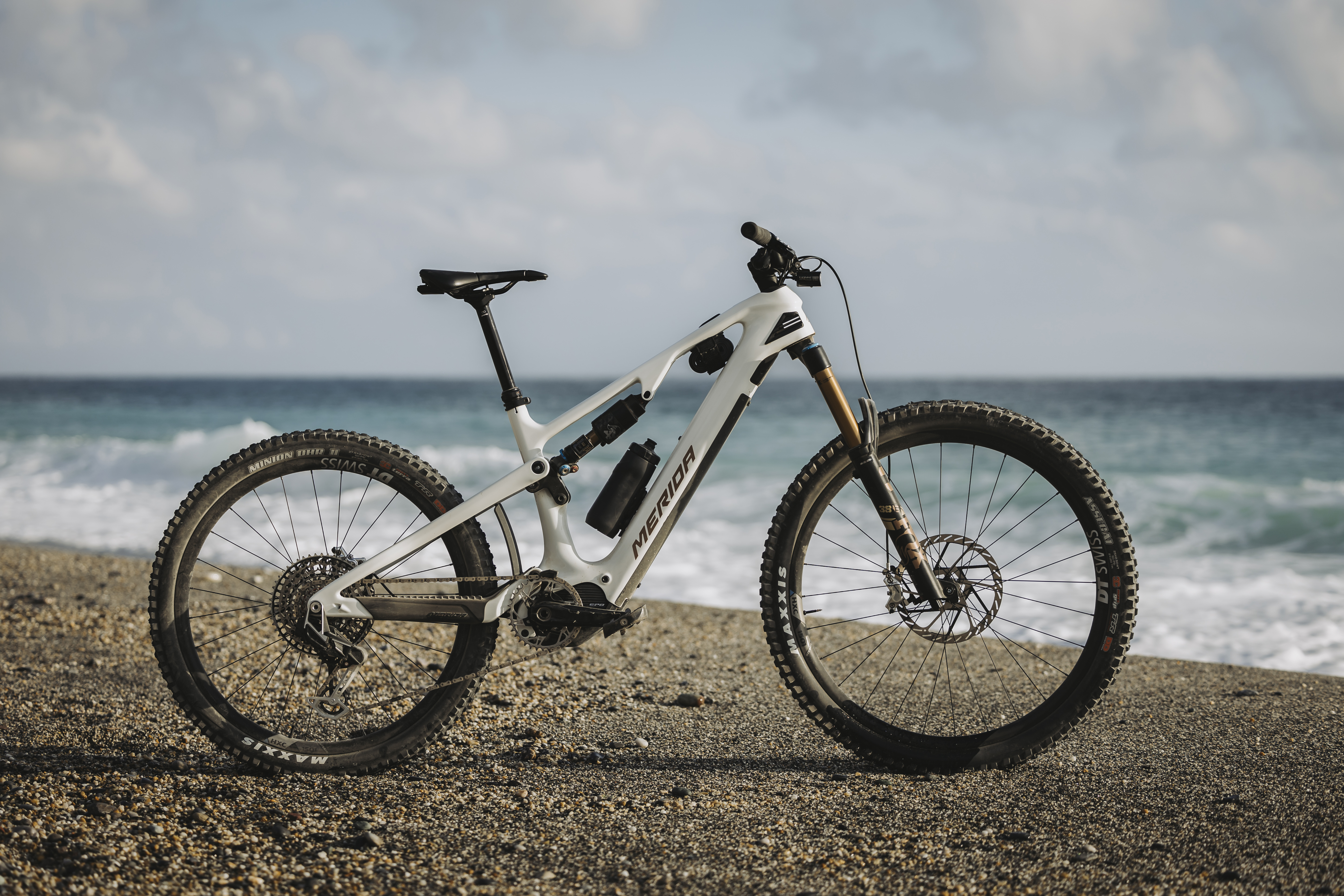

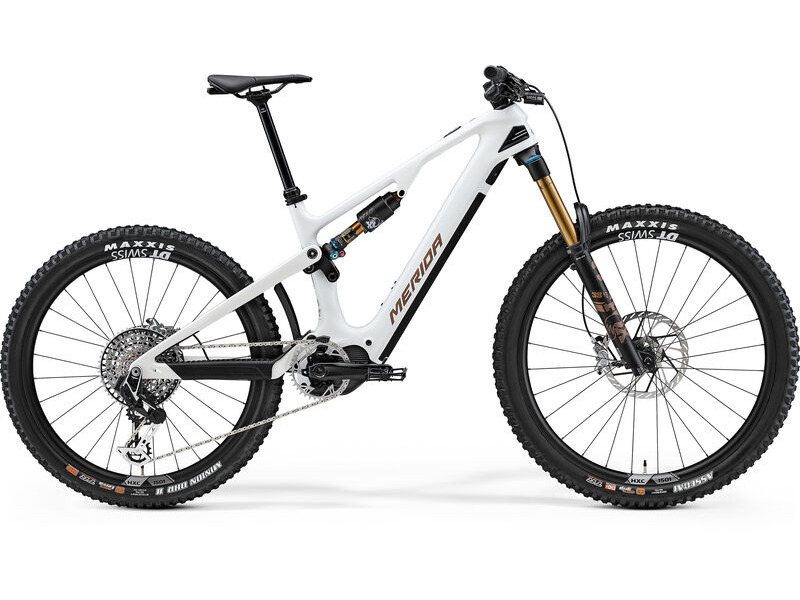

Merida e0ne Sixty 10K E-MTB







The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600Wh battery.

With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of the regular One-Sixty enduro complement proven e-bike heritage. Low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to a 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
SRAM XX Eagle Transmission 12-speed wireless drivetrain, DT Swiss carbon wheelset
Fox 38 Factory fork with 170 mm travel and updated Float X2 Factory rear shock
Integrated 600 Wh battery and powerful Shimano EP801 drive unit
Mixed 'mullet' wheel size as standard, with option to full 29"
Reach-based Agilometer sizing system with 30-230 mm adjustable dropper post


Merida Warranty -

Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.

Merida Sizing -

X-Short: 145cm - 165cm
Short: 155cm - 175cm
Mid: 165cm - 185cm
Long: 175cm - 195cm
X-Long: 185cm+



Bike Specification


FRAME - Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power internal battery; 600Wh
BATTERY CAPACITY - 600Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Trendpower Simplo EU Charger; 4A
POWER BUTTON - Shimano satellite system on/off; EWSW310
MODE SWITCH - Shimano SW-EM800-L
SHOCK - FOX Factory Float X2; 2 Pos Lever
FORK - FOX 38 Factory eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS - 12
SHIFTERS - Limotech RM10 dropper post lever and SRAM AXS Pod Controller
REAR DERAILLEUR - SRAM XX Eagle Transmission AXS wireless
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - SRAM XX Eagle Transmission; Flattop
CHAINSET - SRAM XX Eagle Transmission E-MTB for Steps; 34 tooth chainset with Shimano FC-EM900 165mm length crank all sizes; hollow with MRP 1x chainguide
CASSETTE - SRAM XX Eagle Transmission ; 10-52; 12 speed
BRAKE LEVER - SRAM Code Ultimate Stealth
FRONT BRAKE - SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor
REAR BRAKE - SRAM Code Ultimate Stealth 4 piston hydraulic disc brake caliper with SRAM HS2 220mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Acros ICR Merida integrated neck w/ Blocklock
PEDAL - VP Components - VPE-527
SADDLE - Proxim W400 T2.0 with V-mount adapter; including Merida minitool
SEAT POST - Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; carbon; Tubeless ready (tubeless tape and valves included)
SPOKES - Part of wheelset
FRONT HUB - Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; 110 x 15mm; 6-Bolt
REAR HUB - Part of wheelset - DT Swiss Spline HXC1501 spline 30 boost; 148 x 12mm; SRAM XD; 6-Bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - Lezyne LED FEMTO USB REAR STVZO
OTHER - Merida Team bottle cage, On-bike charging cable and rear fender




Specifications are subject to change without notice.






Geometry



Merida e0ne sixty 10k




Model Year 2024
Options Short (Last 1, in stock allow 5 days for dispatch) White Available
Mid(Last 1, in stock allow 5 days for dispatch) White Available
Long (Last 1, in stock allow 5 days for dispatch) White Available
XL(in stock allow 5 days for dispatch) White Available
Wheel Size 297
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
