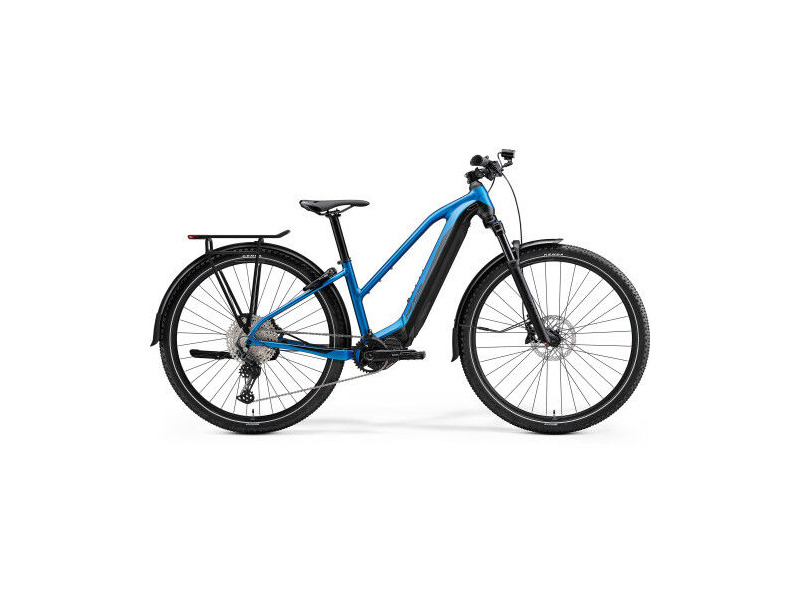

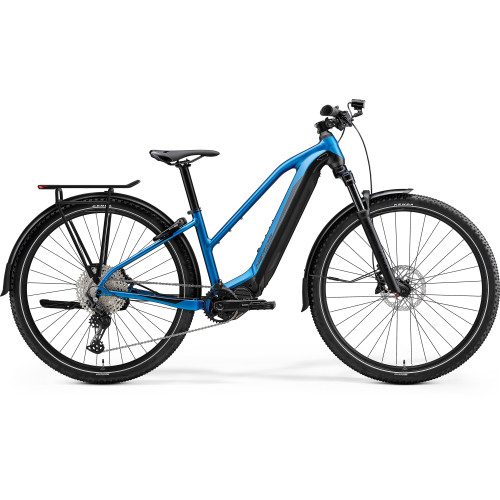

Merida eBig Tour 600 EQ - Blue/Black
Pricing
£3800.00
Offer £2900.00
Finance* from £261.00 per month*subject to status, minimum spend applies
Hover mouse for full example.
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take?
- Price Match
- Can I trade in my Current E-bike towards a new one
FRAME
Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
MOTOR
Shimano Steps EP8; 85Nm
BATTERY
Shimano E8036; 630Wh internal battery
BATTERY CAPACITY
630Wh
EBIKE DISPLAY
Shimano SC-E5003A
CHARGER
Shimano EC-E6002; 2A Charging current
POWER BUTTON
Merida Power Cap button
MODE SWITCH
Shimano SC-E5003A
FORK
Suntour XCR34 LOR DS; Air, Boost; 100mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.4"
GEARS
11
SHIFTERS
Shimano Deore M5100
REAR DERAILLEUR
Shimano Deore RDM5100 11
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
KMC e11S EPT
CHAINSET
Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank
CASSETTE
Shimano M5100; 11-51 teeth; 11 speed
BRAKE LEVER
Shimano M4100
FRONT BRAKE
Shimano M4100 4 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor
REAR BRAKE
Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
GRIP
Merida Expert TK
HANDLEBAR
Merida Expert CC; aluminium; 720mm wide; 10mm rise
STEM
Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (all sizes)
HEAD SET
Merida-8155
PEDAL
VP Components - VPE-537
SADDLE
Merida Expert TK; V-mount
SEAT POST
Merida Expert CC; aluminium; 34.9mm diameter; in-line
WHEEL SIZE
29"
RIMS
Merida Comp CC; 20mm inner rim width; Aluminium
SPOKES
Black stainless
FRONT HUB
Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB
Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
FRONT TYRE
Kenda Booster; 29" x 2.2"; wire bead
REAR TYRE
Kenda Booster; 29" x 2.2"; wire bead
COLOUR
Blue/Black
FRONT LIGHT
Lezyne Power Pro E115, LED front light - 310 Lumens
REAR LIGHT
Spanninga Commuter Glow XE integrated rear light
OTHER
Complete with: Kickstand, Abus frame lock, mudguards, carrier with spring clip and built in rear lights. Shimano Satellite charging port; EW-CP100
Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
MOTOR
Shimano Steps EP8; 85Nm
BATTERY
Shimano E8036; 630Wh internal battery
BATTERY CAPACITY
630Wh
EBIKE DISPLAY
Shimano SC-E5003A
CHARGER
Shimano EC-E6002; 2A Charging current
POWER BUTTON
Merida Power Cap button
MODE SWITCH
Shimano SC-E5003A
FORK
Suntour XCR34 LOR DS; Air, Boost; 100mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.4"
GEARS
11
SHIFTERS
Shimano Deore M5100
REAR DERAILLEUR
Shimano Deore RDM5100 11
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
KMC e11S EPT
CHAINSET
Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank
CASSETTE
Shimano M5100; 11-51 teeth; 11 speed
BRAKE LEVER
Shimano M4100
FRONT BRAKE
Shimano M4100 4 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor
REAR BRAKE
Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
GRIP
Merida Expert TK
HANDLEBAR
Merida Expert CC; aluminium; 720mm wide; 10mm rise
STEM
Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (all sizes)
HEAD SET
Merida-8155
PEDAL
VP Components - VPE-537
SADDLE
Merida Expert TK; V-mount
SEAT POST
Merida Expert CC; aluminium; 34.9mm diameter; in-line
WHEEL SIZE
29"
RIMS
Merida Comp CC; 20mm inner rim width; Aluminium
SPOKES
Black stainless
FRONT HUB
Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB
Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
FRONT TYRE
Kenda Booster; 29" x 2.2"; wire bead
REAR TYRE
Kenda Booster; 29" x 2.2"; wire bead
COLOUR
Blue/Black
FRONT LIGHT
Lezyne Power Pro E115, LED front light - 310 Lumens
REAR LIGHT
Spanninga Commuter Glow XE integrated rear light
OTHER
Complete with: Kickstand, Abus frame lock, mudguards, carrier with spring clip and built in rear lights. Shimano Satellite charging port; EW-CP100
| Options | L (Last 1, Allow 3-5 Days For Delivery) Blue/Black Available XL (Warehouse Stock Allow 3-5 Days For Delivery) Blue/Black Available |
|---|---|
| Wheel Size | 29 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
