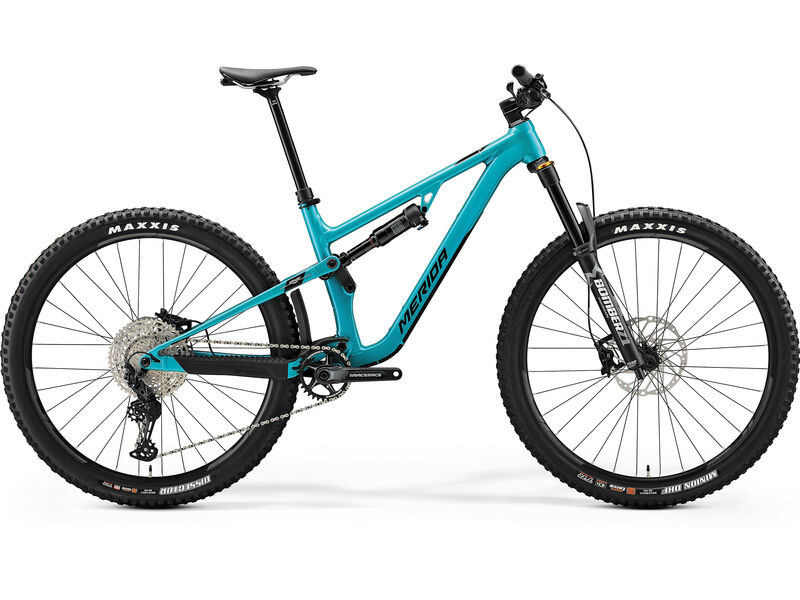

Merida One Forty 700 - Teal 2024
Merida One Forty Full Suspension Mountain Bike
RockShox Deluxe Select+ shock with 150mm Marzocchi Z1 fork, 1 x 12 Shimano drivetrain with Shimano XT multi-release lever, SLX rear mech and Race Face Aeffect chainset. Shimano SLX 4 pot hydraulic disc brakes and travel adjustable dropper post.
Bike Radar / MBUK Trail Bike of the Year winner - 2023 "It didn't take long to award the overall win to the Merida One-Forty 700, though. A trail bike has to climb with the best and descend as well as anything (on less rough tracks, at least), and the One-Forty arguably does both better than any other bike here, while also offering excellent value for your hard-earned." Tough, dependable and ready for whatever trail adventure you can think of, the One-Forty 700 marries a high-value all-aluminium frame to high-performance equipment that won't let you down. Merida's radical new trail geometry delivers the sort of climbing ability that would make a mountain goat proud while shaming enduro bikes with descending speed. Wide range, 12-speed Shimano drive and four-piston brakes, high-performance Marzocchi and RockShox suspension plus our long travel adjustable dropper post deliver unwavering performance. The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It's the pinnacle of modern trail riding, with a super-steep 80 degree seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65 degree head angle mean it's still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's enginners have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Bike Specification
FRAME: Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK: RockShox Deluxe Select+; lockout
FORK: Marzocchi Z1; Air; 150mm travel; Tapered; 44mm fork offset; Max. tyre size: 29 x 2.6"
GEARS: 12
SHIFTERS: Shimano XT; Multi Release and Shimano SL-MT500-IL dropper post lever
REAR DERAILLEUR: Shimano SLX M7100 Shadow+; SGS
BOTTOM BRACKET: Race Face BSA 68/73 ??" 24mm
CHAIN: KMC X12
CHAINSET: Race Face Aeffect; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL)
CASSETTE: Shimano Deore M6100; 10-51 teeth; 12 speed
BRAKE LEVER: Shimano SLX M7120
FRONT BRAKE: Shimano SLX M7120; 4 piston hydraulic disc brake caliper brake with Shimano RT64; 203mm rotor
REAR BRAKE: Shimano SLX M7120; 4 piston hydraulic disc brake caliper brake with Shimano RT64; 203mm rotor
GRIP: Merida Expert EC
HANDLEBAR: Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM: Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
HEAD SET: Merida 8158 1-1/8"-1.5" cartridge bearing
PEDAL: Not included
SADDLE: Merida Expert SL; V-mount; including Merida mini tool
SEAT POST: Merida Team TR; 34.9mm diameter; 10mm lay back; all sizes 30-230mm seat post travel
WHEEL SIZE: 29" / 27.5"
RIMS: Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless-ready (tubeless tape and valves not included)
SPOKES: Double Butted Black stainless
FRONT HUB: Shimano SLX; 110x15mm; 32 spokes; Center lock
REAR HUB: Shimano SLX; 148x12mm, 32 spokes; Center lock. With Merida Expert TR axle including removable lever, 6/4mm allen key
FRONT TYRE: Maxxis Minion DHF; 29" x 2.5"; Kevlar bead, folding; TR EXO 3C MaxxTera
REAR TYRE: Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO+ MaxxTerra
COLOUR: Teal
Specifications are subject to change without notice.
Geometry
Model Year | 2024 |
---|---|
Options | Extra Short (Allow 3-6 days for delivery) Teal Available Short (Allow 3-6 days for delivery) Teal Available Mid (Allow 3-6 days for delivery) Teal Available Long (Allow 3-6 days for delivery) Teal Available Extra Long (Allow 3-6 days for delivery) Teal Available |
Wheel Size | 29 |
