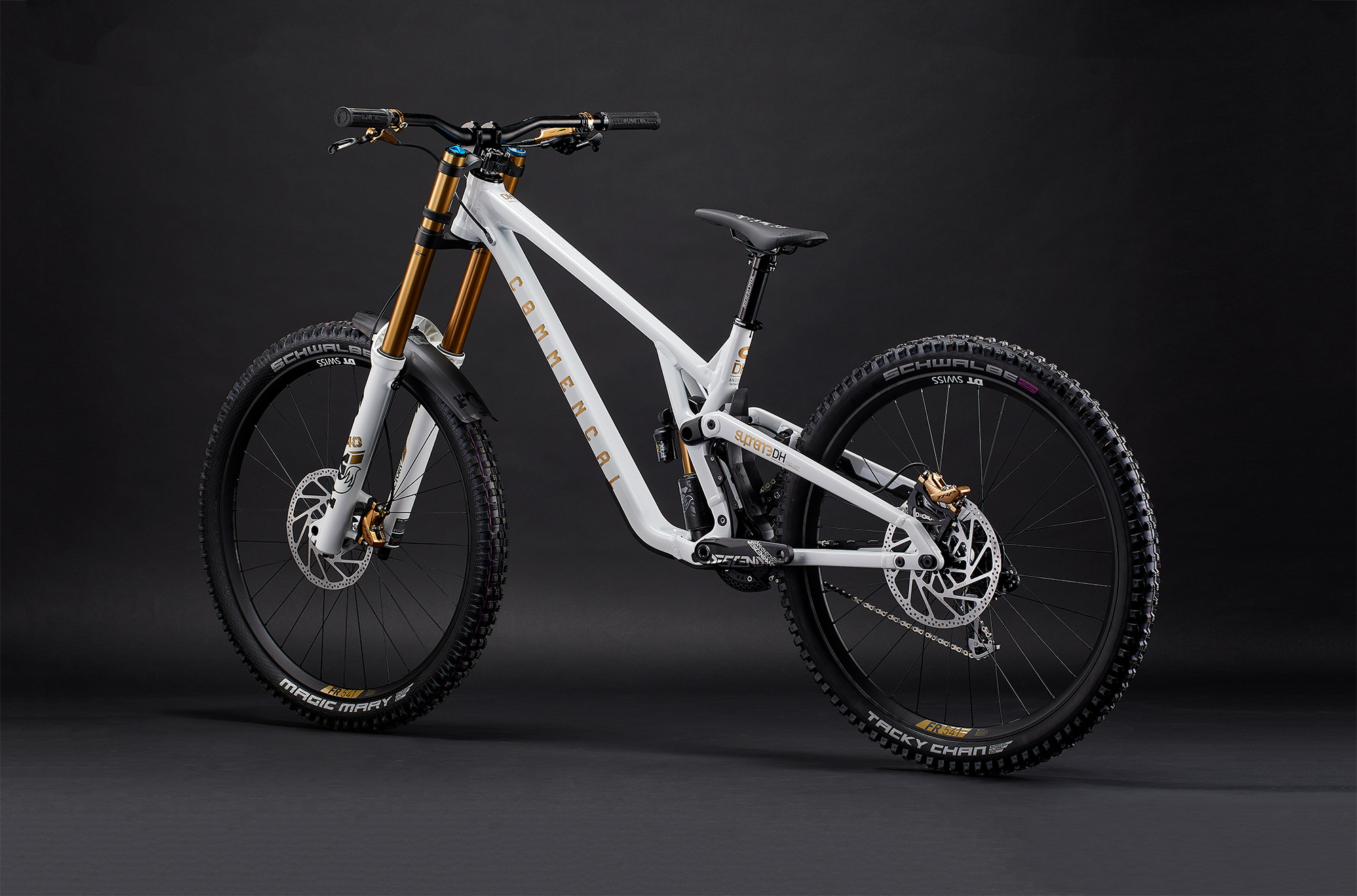

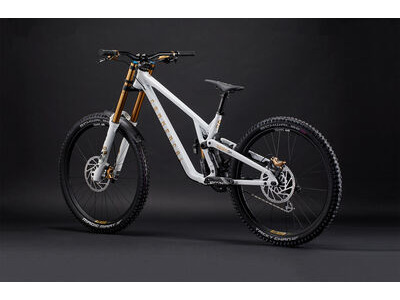

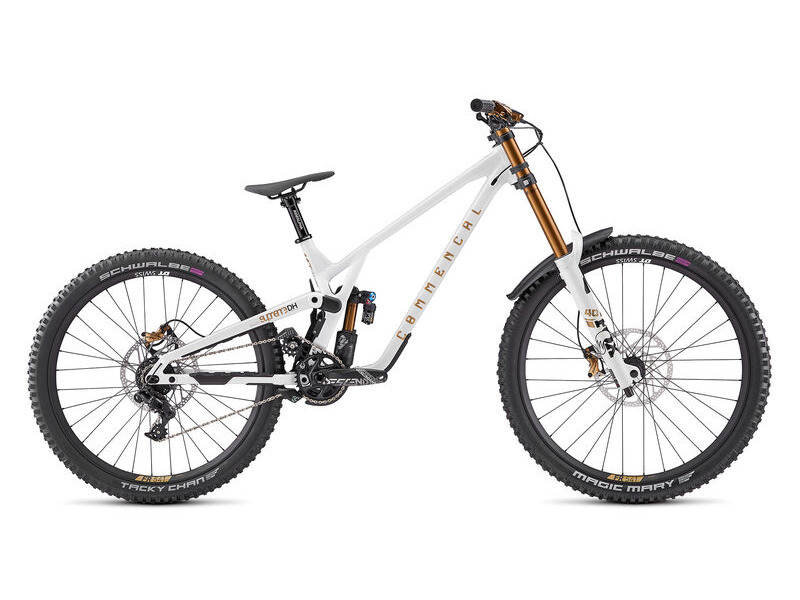

Commencal SUPREME DH V5 SIGNATURE LTD PURE WHITE 2024

The SUPREME DH V5 is our pure race machine. It is the result of three years of work between our R&D department and our athletes. From the bike's very first season racing World Cups, the results have been the best advertisement: 9 wins, 27 podiums and a first place in the Elite Women, Men and Team rankings.

With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day.

The SUPREME DH V5 SIGNATURE LTD is a limited edition model. It is striking at first glance thanks to the Pure White & Gold finish.

This ultimate setup is equipped with a FOX 40 Factory fork. From the adjustable valves to equalize pressure, to the GRIP 2 hydraulic cartridge with four adjustment channels, and not forgetting the Float Evol air spring: impeccably working suspension is a given.

The FOX Float X2 Factory shock absorber provides incomparable sensitivity and never overheats regardless of the duration or condition of the track.

TRP DH-R Evo brakes provide the stopping power: 4 pistons and 223mm discs make them powerful, durable, progressive, and precise.

DT SWISS wheels with FR541 rims and 350 hubs provide dynamism and reliability.

The SRAM GX DH transmission offers ultra-precise and quick gear changes for DH.

Finally, this model features a combo of SCHWALBE Magic Mary/Tacky Chan tyres with Super DH casing and Ultra Soft rubber to tackle the most demanding tracks on the circuit.

*Please note that bike specs are subject to change without prior notice.


Frame Material Details - 6066 alloy, triple butted T4 and T6 tubes; molded down tube, chainstay, and seatstay protection

Rear Shock - FOX FLOAT X2 Factory, high/low-speed compression adjust, high/low-speed rebound adjust, Kashima coating, 250mm length x 75mm stroke

Fork - FOX FLOAT 40 Factory, EVOL, GRIP2 damper, high/low-speed compression adjust, high/low-speed rebound adjust, Kashima coating, 52mm offset, includes mudguard/fender

Headset - ACROS, alloy cups, sealed bearings, ZS56 upper/lower

STEM -BURGTEC MK3
45 mm extension, direct mount, 31.8 mm

HANDLEBAR - BURGTEC Ride Wide Alloy
31.8 mm, 800 mm width, 30 mm rise on S / M / L / XL

GRIPS - BURGTEC Bartender Pro Greg Minnaar Signature
Single clamp, black

BRAKES - TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width

SHIFTERS - SRAM GX DH
7s

CHAIN GUIDE - E13 LG1 + Bottom Guide
32-34t

REAR DERAILLEUR - SRAM GX Eagle
7s

BOTTOM BRACKET - SRAM DUB Pressfit

CRANKSET - SRAM Descendant DH, 165 mm crank arms, DUB

Chainring: SRAM Descendant DH, 34t

CHAIN
SRAM PC 1130


CASSETTE
SRAM PG-720 DH 7s, 11-25t

RIMS - DT SWISS FR 541
Rear: 27.5'', 32h, 30 mm inner width - Front: 29, 32h, 30 mm inner width

HUBS - DT SWISS DT 350
Rear: 32h, sealed bearings, 12 x 157 mm, 36t, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost

SPOKES/NIPPLES - DT SWISS Competition
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black

TYRES
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless Easy

SEAT POST - Ride Alpha 31.6 mm, 250 mm

SADDLE - FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails

WEIGHT - 18,1 kg / 39,9 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

COLOUR
Pure White
Shiny Finish

ACCESSORIES
Chainstay protector, seatstay protector, fork bumpers, downtube protector, fork fender
