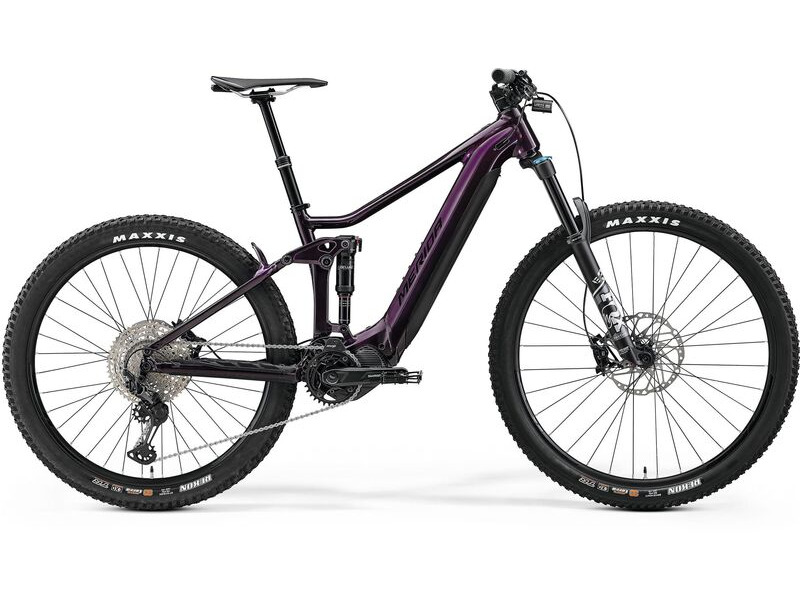

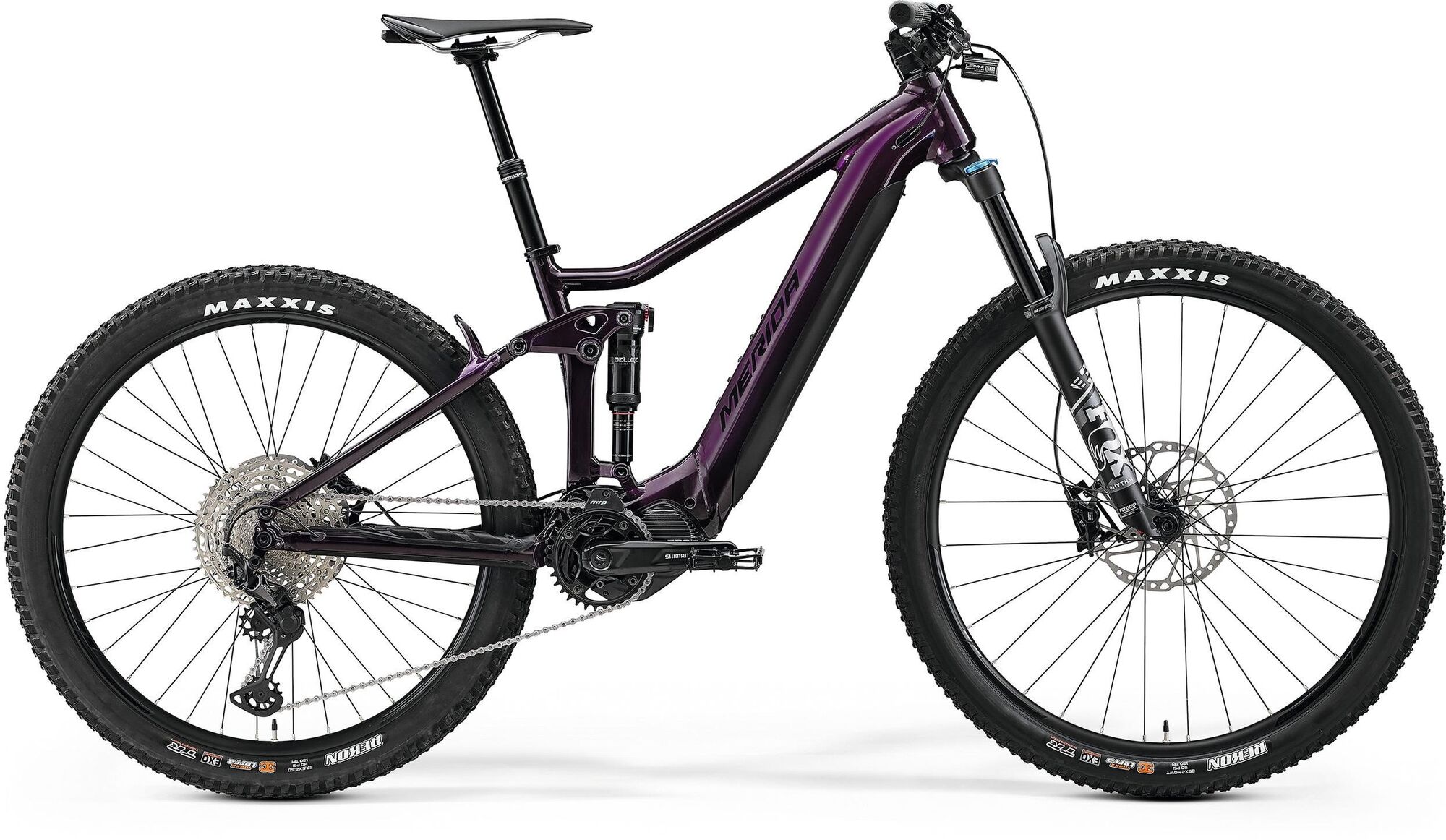

Merida e-0ne Forty 700 Ebike 2023
Pricing
£5650.00
Offer £3610.00
Finance* from £324.90 per month*subject to status, minimum spend applies
Hover mouse for full example.
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take and what will it cost?
- Price Match
- Can I trade in my Current E-bike towards a new one
The eOne-Forty takes design queues from the award winning eOne-Sixty and, using exactly the same frame and features, makes for different ride characteristics. Shorter travel makes the eOne-Forty a little more trail friendly and playful than it's big travel sibling.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh).
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Merida Warranty -
Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
FRAME - Lite III - hydroformed 6061 double butted aluminium with intergrated battery. internal cable routing via smart entry ports. tapered head tube, 148 x 12mm axle standard. max. tyre size 27.5" x 2.8".
FORK - Fox rhythm 34 float emtb+; air; 140mm travel; tapered; 51mm fork offset. max. tyre size: 29" x 2.5"
REAR SHOCK - Rockshox deluxe select+; platform
HEADSET - Merida-8152
STEM - Merida expert etrii; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm (all sizes). gopro & supernova mount point.
BARS - Merida expert etr; 780mm wide; 20mm rise
FRONT BRAKE - Shimano slx; 4 piston hydraulic disc brake caliper with shimano rt64; 203 mm rotor
REAR BRAKE - Shimano slx; 4 piston hydraulic disc brake caliper with shimano rtem600; 203 mm rotor
BRAKE LEVER - Shimano slx
REAR MECH - Shimano xt rdm8100 shadow+ 12
SHIFTERS - Shimano deore sl-m6100 12 speed with shimano sl -mt500-il lever
SPEED - 12
RIMS - Merida expert tr; 29mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included)
FRONT HUB - Shimano slx; 110x15mm; 32 spokes; center lock
REAR HUB - Shimano slx; 148x12mm, 36 spokes; center lock; including removable lever with 4/6mm allen key
SPOKES - Black stainless
FRONT TYRE - Maxxis rekon; 29" x 2.4"; kevlar bead; 3c exo maxxterra
REAR TYRE - Maxxis rekon; 27.5" x 2.6"; kevlar bead; tr 3c exo maxxterra
SEAT POST - Merida expert tr; 30.9mm diameter; in-line; drop: 100mm (s), 125mm (m), 150mm (l/xl), 170mm (xxl)
SADDLE - Merida expert cc; v-mount including merida multitool
CHAINSET - Shimano cre80-12-b; 34 tooth chainring with shimano fcem600; 165mm length crank
BOTTOM BRACKET - Part of shimano steps motor
CHAIN - Kmc e12t ept
CASSETTE - Shimano m6100 10-51 teeth
BATTERY SIZE - ( WH) 630 wh (xs = 504)
MOTOR - Shimano e8036; 630wh internal battery, shimano steps ep8; 85nm
USER INTERFACE - Shimano sc-e7000
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh).
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Merida Warranty -
Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
FRAME - Lite III - hydroformed 6061 double butted aluminium with intergrated battery. internal cable routing via smart entry ports. tapered head tube, 148 x 12mm axle standard. max. tyre size 27.5" x 2.8".
FORK - Fox rhythm 34 float emtb+; air; 140mm travel; tapered; 51mm fork offset. max. tyre size: 29" x 2.5"
REAR SHOCK - Rockshox deluxe select+; platform
HEADSET - Merida-8152
STEM - Merida expert etrii; aluminium; 35mm diameter; 0 degree rise - stem length: 50mm (all sizes). gopro & supernova mount point.
BARS - Merida expert etr; 780mm wide; 20mm rise
FRONT BRAKE - Shimano slx; 4 piston hydraulic disc brake caliper with shimano rt64; 203 mm rotor
REAR BRAKE - Shimano slx; 4 piston hydraulic disc brake caliper with shimano rtem600; 203 mm rotor
BRAKE LEVER - Shimano slx
REAR MECH - Shimano xt rdm8100 shadow+ 12
SHIFTERS - Shimano deore sl-m6100 12 speed with shimano sl -mt500-il lever
SPEED - 12
RIMS - Merida expert tr; 29mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included)
FRONT HUB - Shimano slx; 110x15mm; 32 spokes; center lock
REAR HUB - Shimano slx; 148x12mm, 36 spokes; center lock; including removable lever with 4/6mm allen key
SPOKES - Black stainless
FRONT TYRE - Maxxis rekon; 29" x 2.4"; kevlar bead; 3c exo maxxterra
REAR TYRE - Maxxis rekon; 27.5" x 2.6"; kevlar bead; tr 3c exo maxxterra
SEAT POST - Merida expert tr; 30.9mm diameter; in-line; drop: 100mm (s), 125mm (m), 150mm (l/xl), 170mm (xxl)
SADDLE - Merida expert cc; v-mount including merida multitool
CHAINSET - Shimano cre80-12-b; 34 tooth chainring with shimano fcem600; 165mm length crank
BOTTOM BRACKET - Part of shimano steps motor
CHAIN - Kmc e12t ept
CASSETTE - Shimano m6100 10-51 teeth
BATTERY SIZE - ( WH) 630 wh (xs = 504)
MOTOR - Shimano e8036; 630wh internal battery, shimano steps ep8; 85nm
USER INTERFACE - Shimano sc-e7000
Geometry
| Model Year | 2023 |
|---|---|
| Options | M (Last 1, Allow 3-5 Days For Delivery) Purple Available L (Sold Out) Purple XL (2 Left, Allow 3-5 Days For Delivery) Purple Available |
| Wheel Size | 297 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
