Merida e0ne Sixty 6000 2024
Pricing
Finance* from £405.63 per month*subject to status, minimum spend applies
Hover mouse for full example.
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take and what will it cost?
- Price Match
- Can I trade in my Current E-bike towards a new one

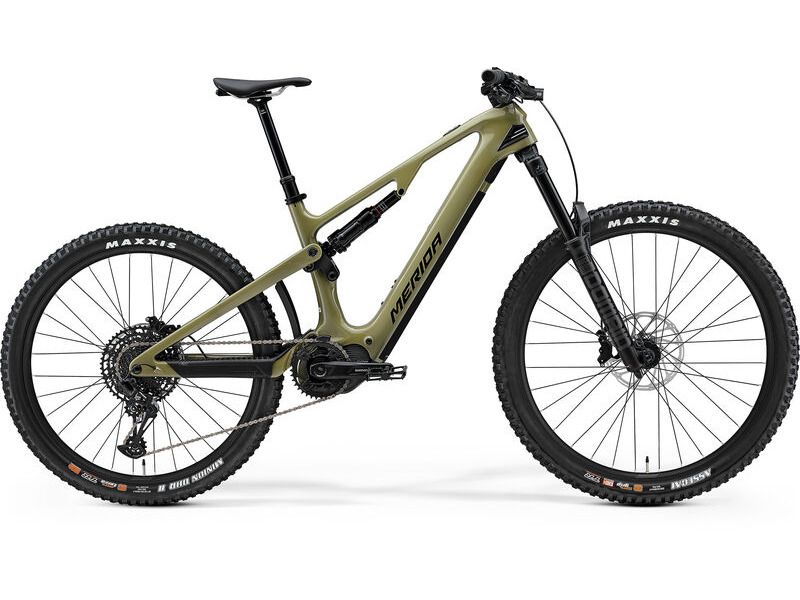

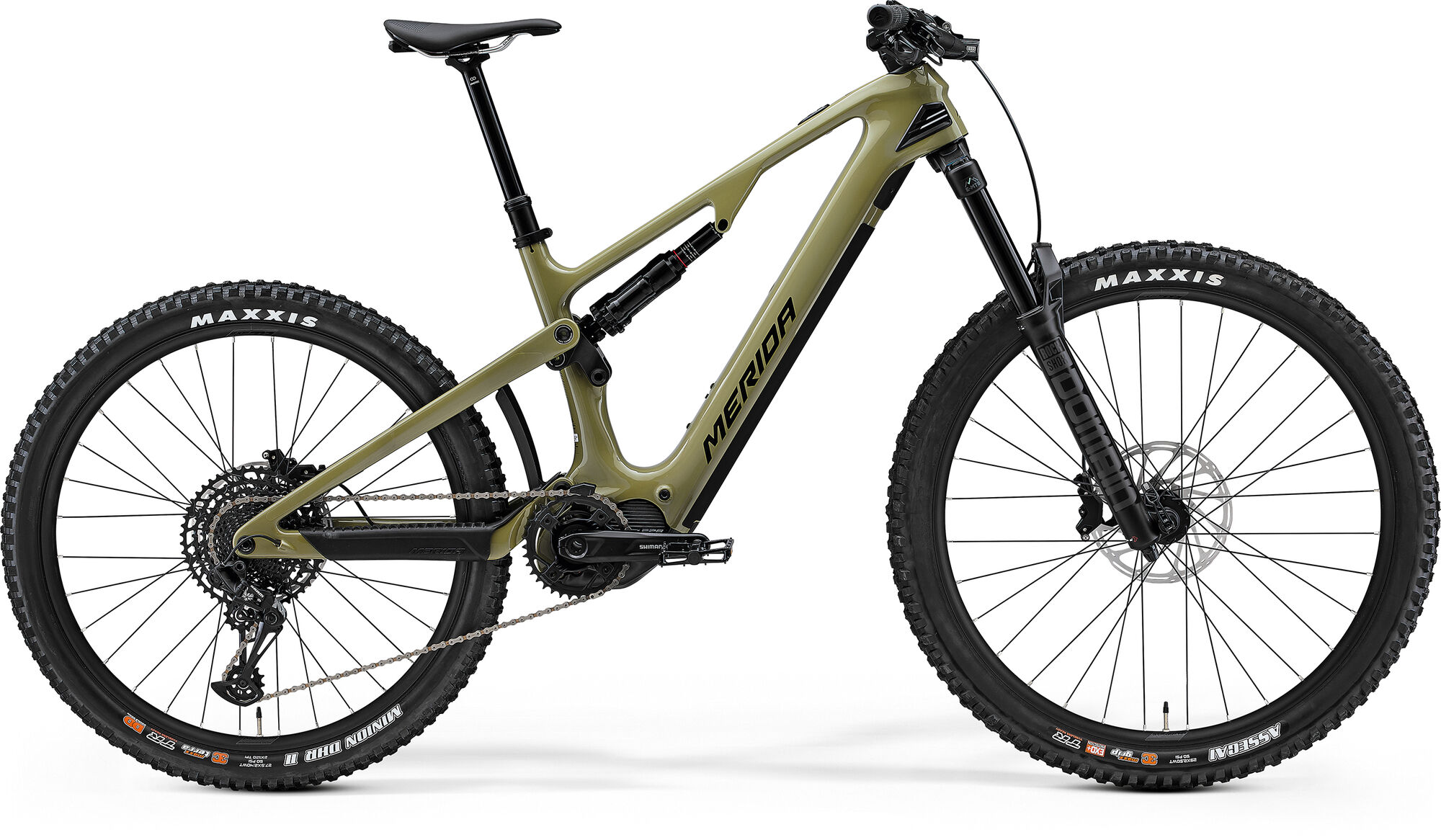

Merida e0ne Sixty 6000 E-MTB
The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections.
With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. Low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. The flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- SRAM NX Eagle 12-speed drivetrain, Merida tubeless-ready wheelset
- RockShox Domain fork with 170 mm travel and Super Deluxe rear shock
- Integrated 600Wh battery with optional 360 Whrange extender, powerful Shimano EP801 85Nm drive unit
- Mixed wheel size as standard with option to full 29"
- Reach-based Agilometer sizing system with 30-230 mm adjustable dropper post
Merida Warranty -
Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
Merida Sizing -
X-Short: 145cm - 165cm
Short: 155cm - 175cm
Mid: 165cm - 185cm
Long: 175cm - 195cm
X-Long: 185cm+
Bike Specification
FRAME - Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power internal battery; 600Wh
BATTERY CAPACITY - 600Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Trendpower Simplo EU Charger; 4A
POWER BUTTON - CAP-045, Merida Power Button
MODE SWITCH - Shimano SW-EM800-L
SHOCK - RockShox Super Deluxe Select
FORK - Rock Shox Domain Gold RC E-MTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 3.0"
GEARS - 12
SHIFTERS - Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
REAR DERAILLEUR - SRAM NX Eagle
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - SRAM SX Eagle
CHAINSET - FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE - SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
BRAKE LEVER - SRAM DB8
FRONT BRAKE - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
REAR BRAKE - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Acros ICR Merida integrated neck w/ Blocklock
PEDAL - VP Components - VPE-527
SADDLE - Merida Expert SL with V-mount; including Merida minitool
SEAT POST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Black stainless
FRONT HUB - Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
REAR HUB - Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - USB rear Light CG-214RG
OTHER - Trendpower On-bike charging cable
Specifications are subject to change without notice.

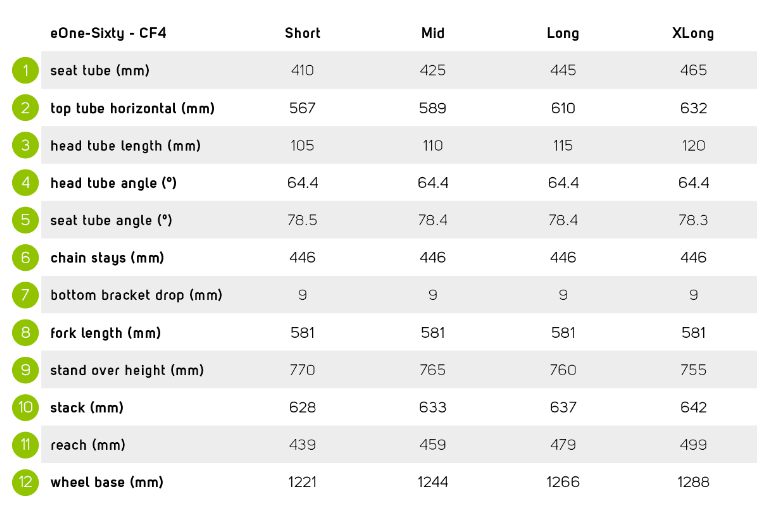

Geometry
| Model Year | 2024 |
|---|---|
| Options | S (Allow 3-5 Days For Dispatch) Green/Black Available Mid (Allow 3-5 Days For Dispatch) Green/Black Available Long (Allow 3-5 Days For Dispatch) Green/Black Available X Long (Allow 3-5 Days For Dispatch) Green/Black Available |
| Wheel Size | 297 |
