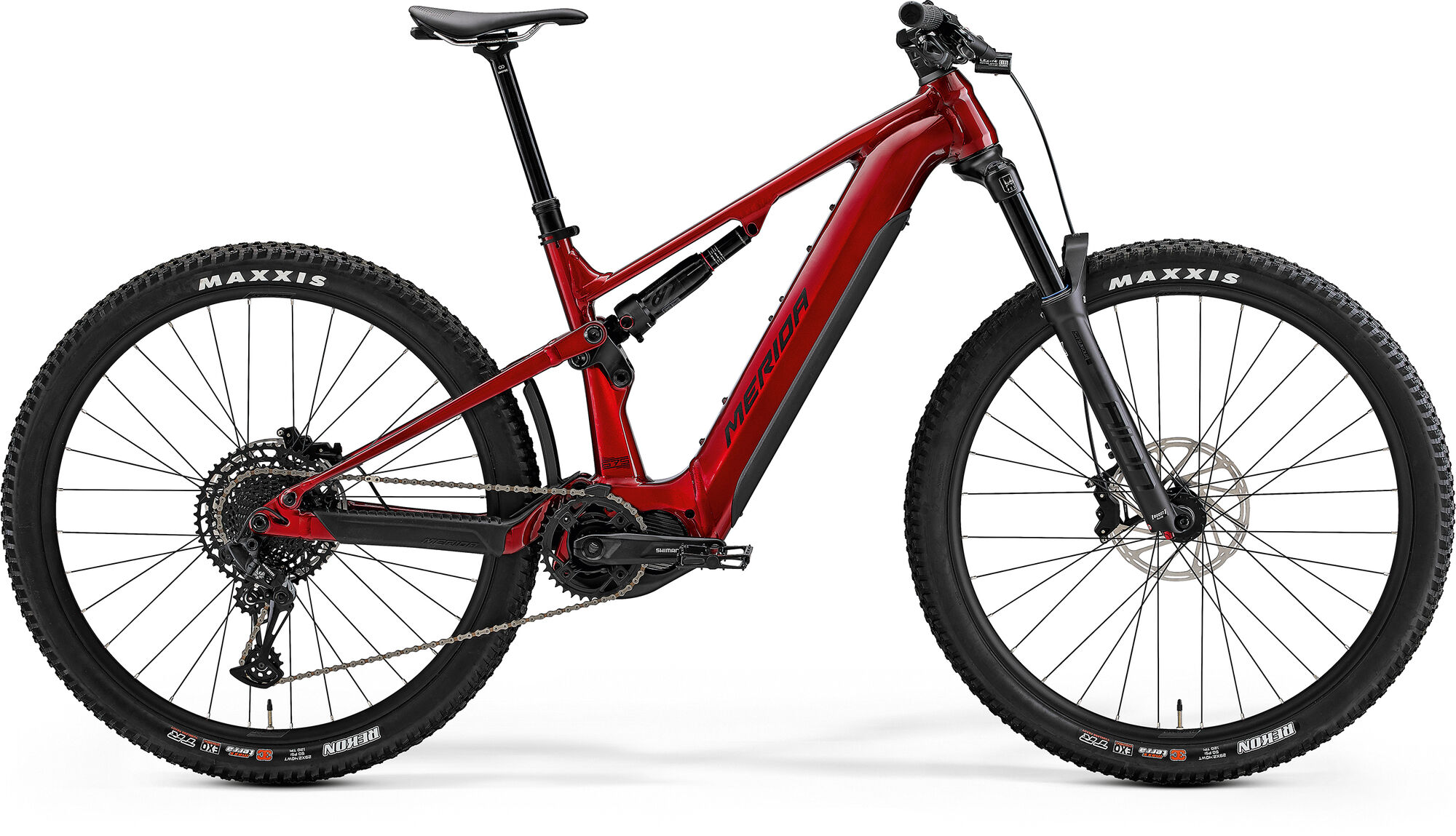

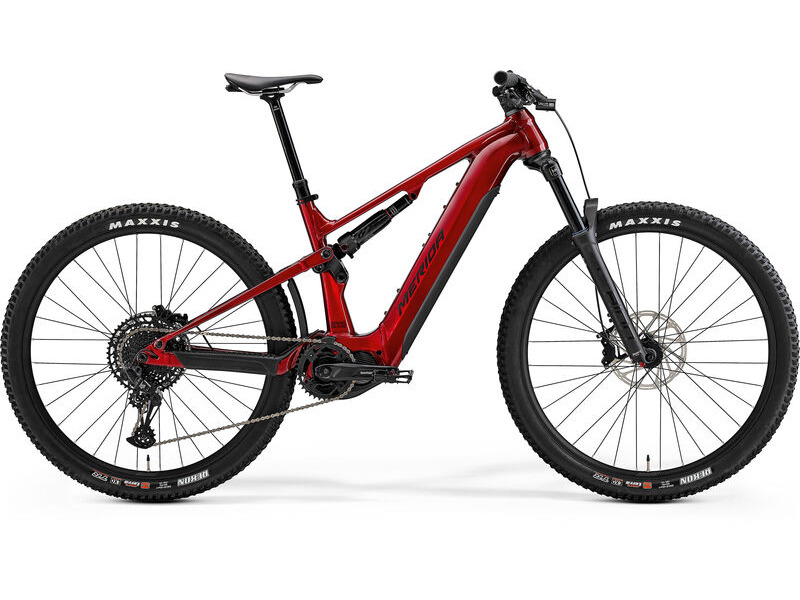

Merida e0ne Forty 675 2024

The eOne-Forty shares exactly the same frame and design features as the headline grabbing eOne-Sixty though has different ride characteristics. The eOne-Forty is the option to go for if fast trail riding with the occasional visit to a bikepark is your mountain biking style of choice.

The new eOne-Forty has a big range in every sense. It's highly versatile, from the trail to the commute, and the impressive 750Wh battery can be boosted with a 360Wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Our simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.

- Durable LITE aluminium frame with 143 mm rear wheel travel
- Suntour Aion fork with 150 mm travel and RockShox Deluxe rear shock
- SRAM NX Eagle 12-speed, wide-range drivetrain
- User-removable 750Wh battery with optional 360Wh range extender, powerful Shimano EP801 drive unit
- Full 29" with option to run mixed 'mullet' wheel sizes
- Low standover height and long travel dropper posts on all sizes


Merida Warranty -

Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.

Merida Sizing -

X-Short: 145cm - 165cm
Short: 155cm - 175cm
Mid: 165cm - 185cm
Long: 175cm - 195cm
X-Long: 185cm+

FRAME -
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8"

MOTOR -
Shimano Steps EP801; 85Nm

BATTERY -
Simplo Trend Power Internal Battery Gen 2; 750Wh

BATTERY CAPACITY -
750Wh

EBIKE DISPLAY -
Shimano SC-EN600

CHARGER -
Trend Power Simplo EU Charger; 4A

MODE SWITCH -
Shimano SW-EN600-L

SHOCK -
RockShox Super Deluxe Select

FORK -
Suntour AION 36X-Boost; 150mm travel; Tapered, 44mm fork offset

GEARS -
12

SHIFTERS -
Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed

REAR DERAILLEUR -
SRAM NX Eagle

BOTTOM BRACKET -
Part of Shimano Steps motor

CHAIN -
SRAM SX Eagle

CHAINSET -
FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide

CASSETTE -
SRAM PG-1210 Eagle; 10-50 teeth; 12 speed

BRAKE LEVER -
SRAM DB8

FRONT BRAKE -
SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor

REAR BRAKE -
SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor

GRIP -
Merida Expert EC

HANDLEBAR -
Merida Expert eTR; 780mm wide; 20mm rise

STEM -
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.

HEAD SET -
Acros ICR Merida external neck w/ Blocklock

PEDAL -
VP Components - VPE-527

SADDLE -
Merida Expert SL with V-mount; including Merida minitool

SEAT POST -
Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel

WHEEL SIZE -
29"

RIMS -
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29"

SPOKES -
Black stainless

FRONT HUB -
Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt

REAR HUB -
Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key

FRONT TYRE -
Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; 3C EXO MaxxTerra

REAR TYRE -
Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra

FRONT LIGHT -
Lezyne Power STVZO E115, reverse Merida Custom Mount

REAR LIGHT -
USB rear Light CG-214RG

OTHER -
Trend Power On-bike charging cable
