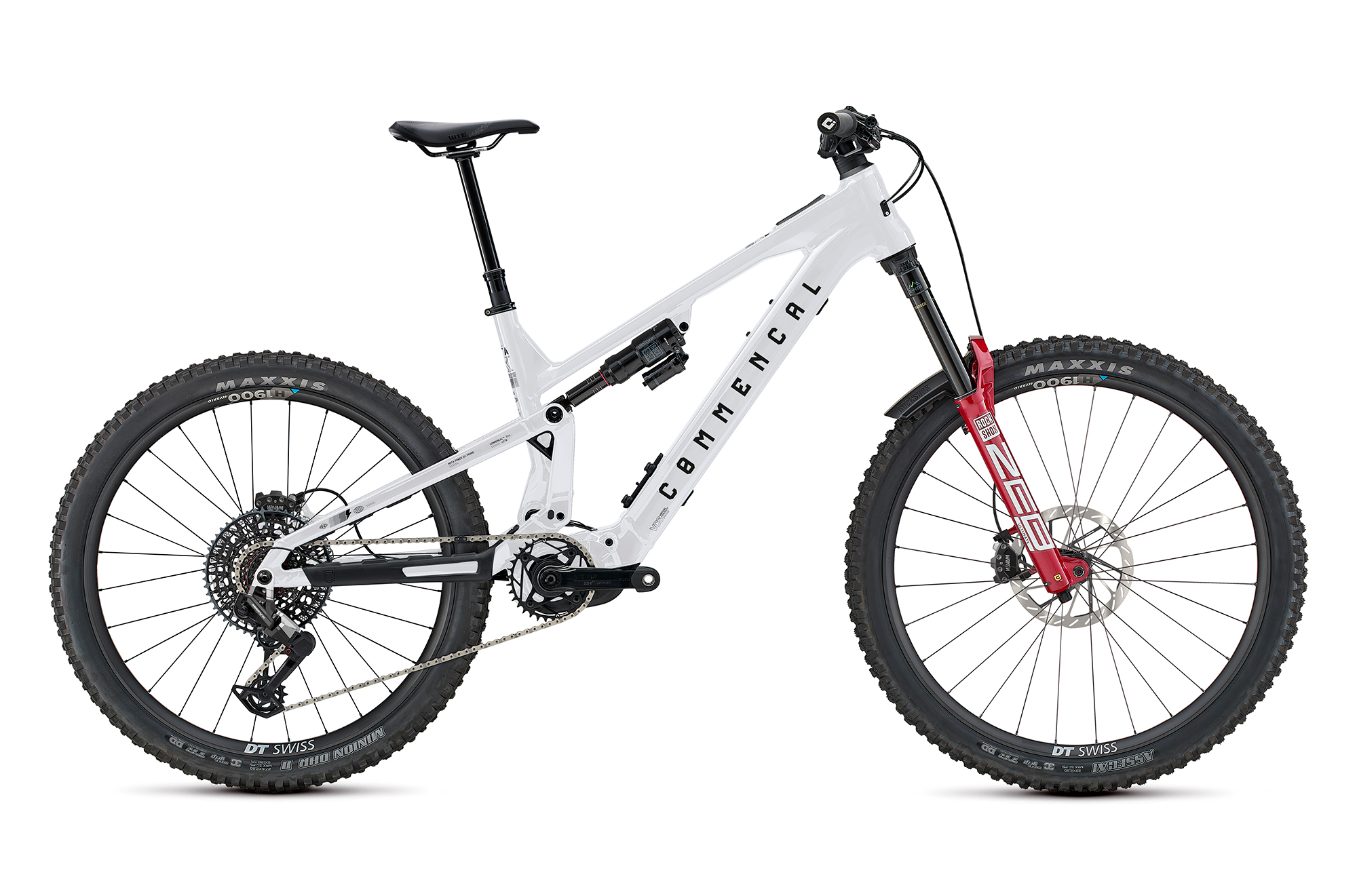

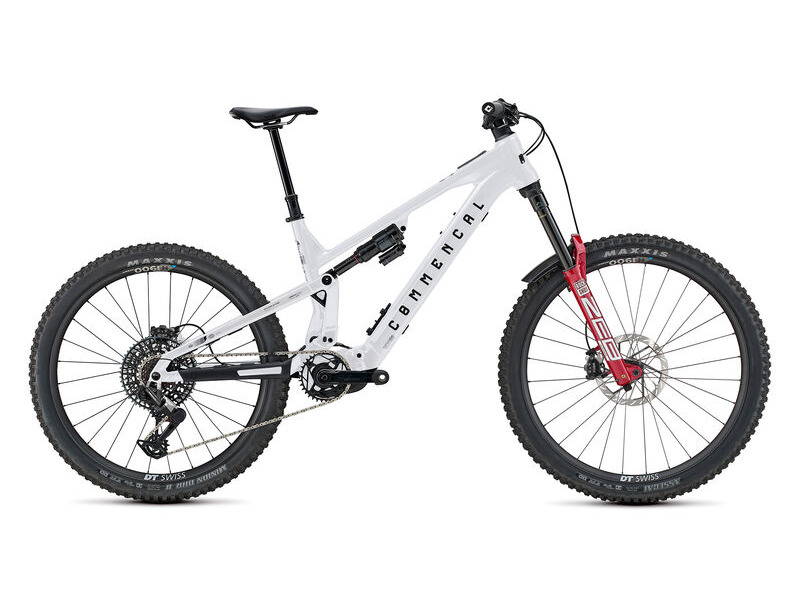

Commencal Meta Power SX Avinox Rockshox DJI

The META POWER SX AVINOX ROCKSHOX delivers exceptional performance with its ZEB Ultimate suspension, responsive SRAM Eagle 90 T-Type drivetrain, and proven Maven Base braking system.

- A ZEB Ultimate 170mm fork and Super Deluxe Select shock absorber to filter the terrain.
- The new SRAM Eagle 90 T-Type groupset was chosen for the drivetrain. It is reliable and responsive.
- The wheels are H1900 from DT SWISS. Designed for E-Bikes, they are hand-built.
- Braking is handled by the proven Maven Base. They guarantee power and crisp feel in all circumstances.


Frame
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

Motor
AVINOX
120- ?Nm peak torque with a 1,000- ?W boost mode, and 105- ?Nm / 850- ?W in normal operation

Battery
AVINOX
600 W on S, 800 W on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger

Display
AVINOX BD100, ON/OFF switch, assist mode level, battery charge level
Switch: AVINOX BC100, mode switch, walk assist, light switch

Shock
ROCKSHOX Super Deluxe Select
230 x 60 mm, Debonair +, 2-postion (open/firm) lever, Rebound

Fork
ROCKSHOX Zeb Ultimate 170 mm
29", damper 3.2, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset

Headset
ACROS ZS56/ZS66
Alloy cups, stainless steel & sealed bearings

Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips
RIDE ALPHA MUSHROOM
Soft compound, single clamp, black

Brakes
SRAM Maven Base, 4 pistons
Rotors: SRAM HS2, 6-bolt, 220 mm

Shifters
SRAM Eagle 90
12s

Chain guide
RIDE ALPHA
32-34t

REAR DERAILLEUR
SRAM Eagle 90
12s, T-TYPE

Crankset
E13 HELIX CORE, 155 mm crank arms
Chainring: SRAM CR T-Type, 34t

Chain
SRAM GX T-type
12s

Cassette
SRAM XS 1270 T-Type

Rims
DT SWISS H 1900
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

Hubs
DT SWISS 370 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm

Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

Tyres
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai
Rear: 27,5x2.50WT 3C MaxxGrip, Double Down, TR - Front: 29x2.50WT 3C MaxxGrip, Double Down, TR

Seat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL

Saddle
WTB SOLANO
142 x 240 mm, Medium

Weight
- kg / - lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included
CRANKBROTHERS Stamp 1

Colour
Pure White
Shiny Finish

Accessories
Motor protector, chainstay protector, seatstay protector, ZEB specific fender
