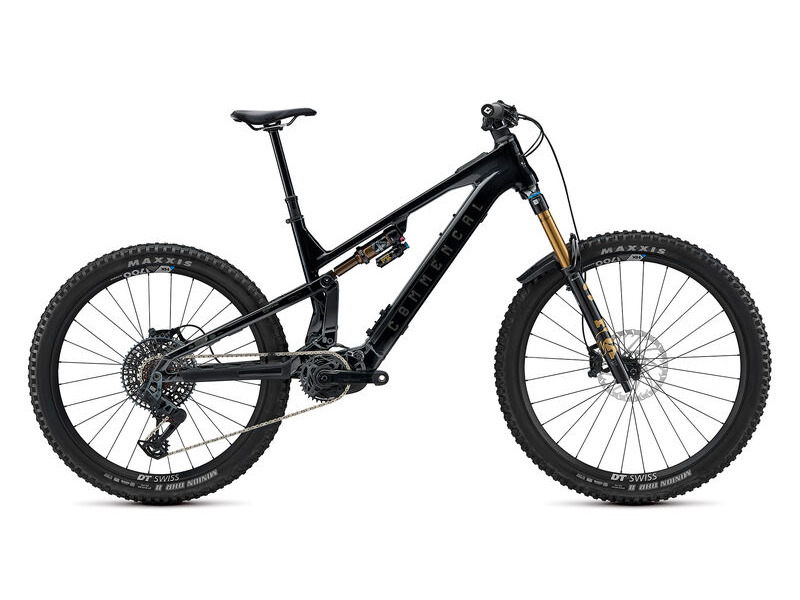

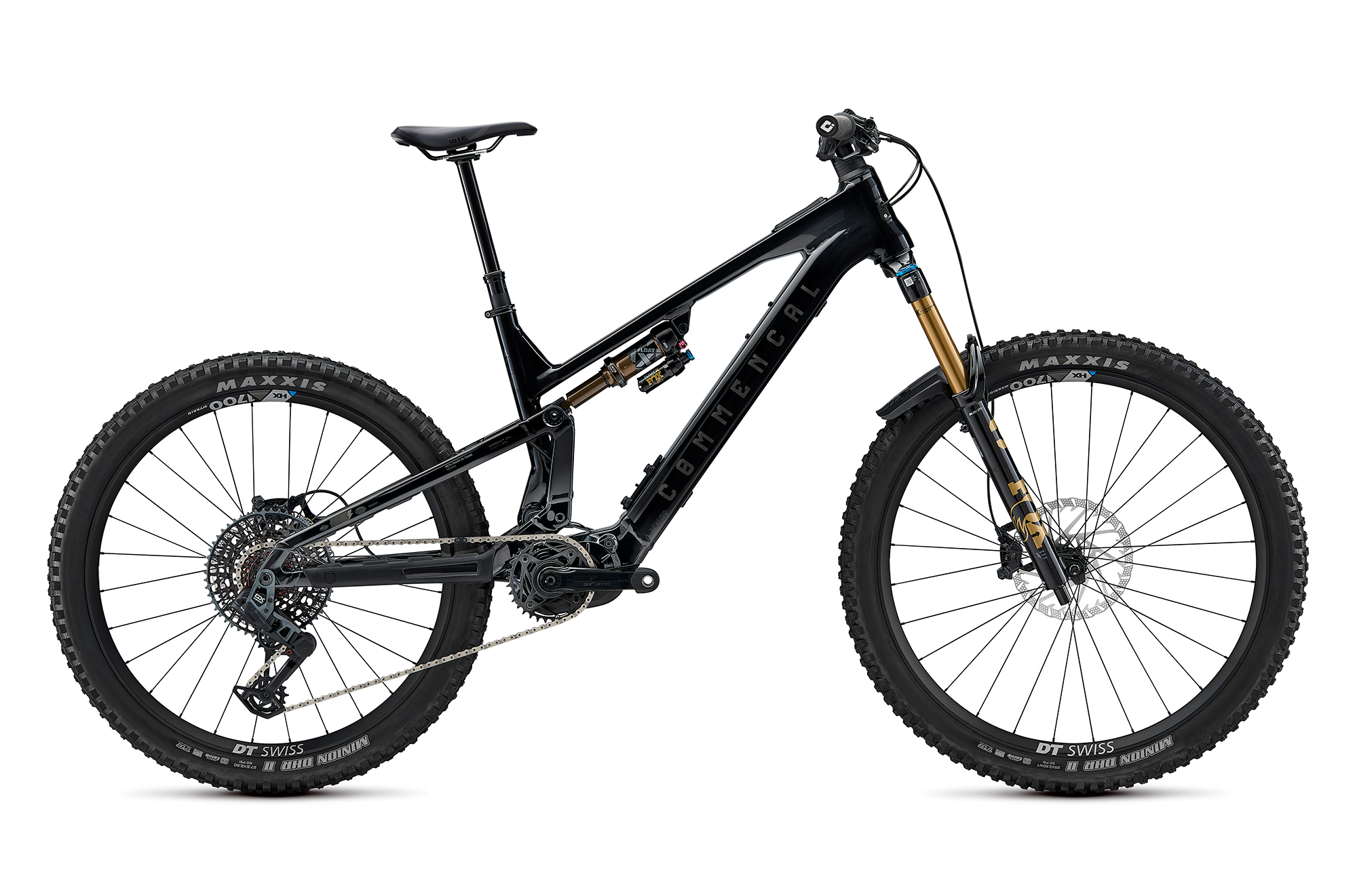

Commencal Meta Power SX Avinox Signature Pure Black 2026

The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.

The META POWER SX AVINOX SIGNATURE is a high-end build with FOX Factory suspension and an electronic SRAM GX Eagle T-Type drivetrain.

- Featuring the FOX 36 Factory fork with 160mm travel. Kashima-coated stanchions and a Grip X2 cartridge make it highly tuneable and offers unmatched performance. The rear shock is a FOX X Float Factory, delivering the perfect balance of grip and comfort.
- Braking is handled by SHIMANO with a pair of Deore XT 4-piston brakes. The feel is direct and consistent thanks to 203mm rotors.
- DT SWISS HX 1700 wheels are paired with DT SWISS 370 hubs. This combo is ready to take the hits.
- Reliable and responsive, the SRAM GX Eagle T-Type drivetrain is ideal for e-MTB riding. Robust and versatile, it adapts to any situation.

Frame
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

Motor
AVINOX
120- ?Nm peak torque with a 1,000- ?W boost mode, and 105- ?Nm / 850- ?W in normal operation

Battery
AVINOX
600 W on S, 800 W on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger

Display
AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system.
AVINOX BD100, ON/OFF switch, assist mode level, battery charge level
Switch: AVINOX BC100, mode switch, walk assist, light switch

Shock
FOX Float X Factory
230 x 60 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR, 0.4ci Spacers

Fork
FOX 36 Factory 160 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset

Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings

Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips
ODI LONGNECK V2.1
Soft compound, single clamp, black

Brakes
SHIMANO XT, 4 pistons
Rotors: GALFER SHARK, 6-bolt, 203 mm

Shifters
SRAM AXS POD
12s

Chain guide
RIDE ALPHA
32-34t

REAR DERAILLEUR
SRAM GX EAGLE T-TYPE
12s

Crankset
E13 HELIX RACE, 155 mm crank arms, Bosch
Chainring: SRAM CR T-TYPE, 34t, BCD 104

Chain
SRAM GX EAGLE T-TYPE
12s, Flat Top

Cassette
SRAM X0 EAGLE T-TYPE
12s, 10-52t

Rims
DT SWISS HX1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29", 28h, 30 mm inner width

Hubs
DT SWISS 350 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm

Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

Tyres
Rear: MAXXIS MINION DHRII 27.5" - Front: MAXXIS MINION DHRII 29
Rear: 27.5x2.50WT 3C MaxxTerra / EXO+ Casing / TR - Front: 29x2.50WT 3C MaxxTerra / EXO+ Casing / TR

Seat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL

Saddle
WTB SOLANO
142 x 240 mm, Medium

Weight
- kg / - lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included
CRANKBROTHERS Stamp 1

Colour
Pure Black
Shiny Finish

Accessories
RideWrap Lotus Proâ„¢ protection film applied, motor protector, chain stay protector, seat stay protector, FIDLOCK base, fork fender, CRANKBROTHERS STAMP 1 pedals
