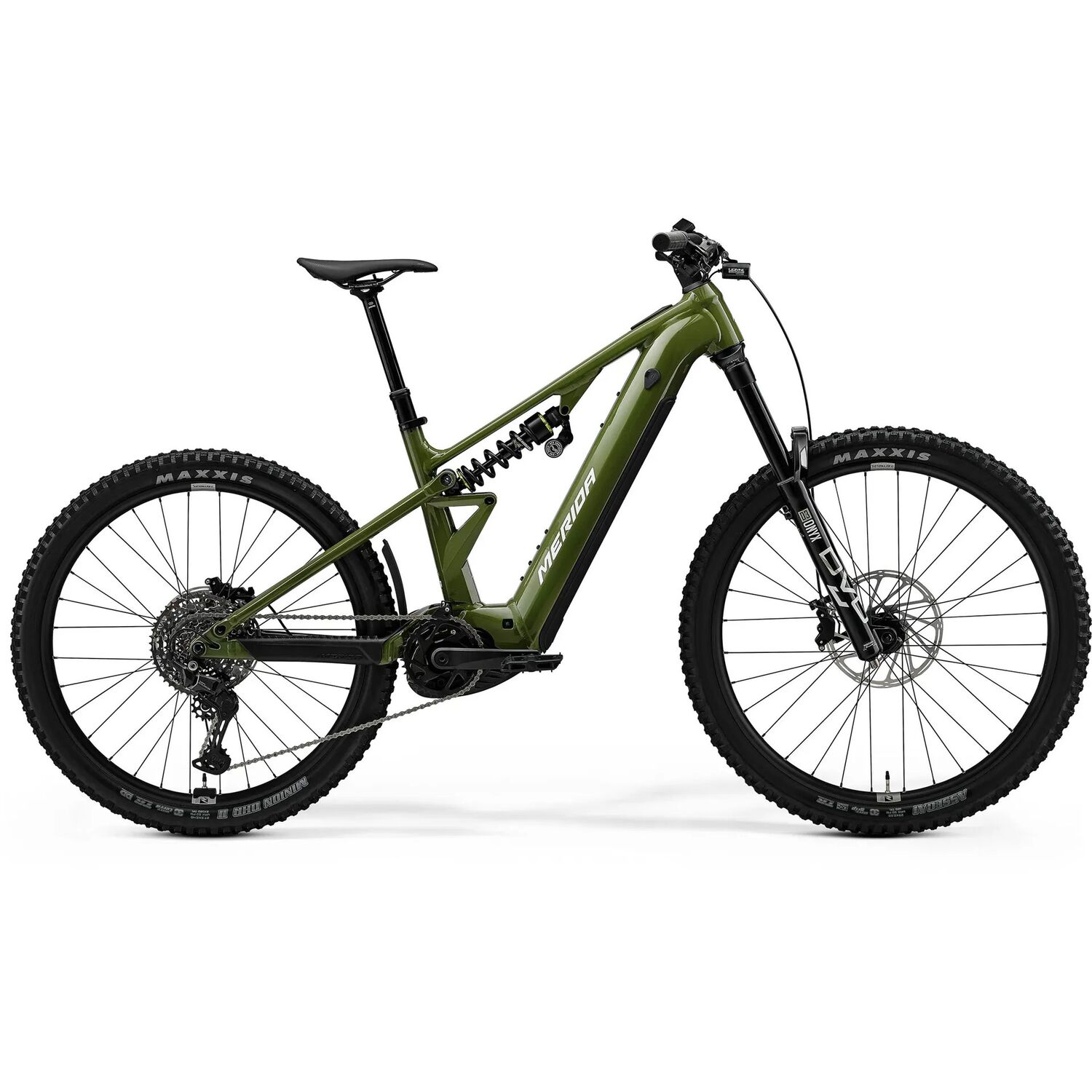

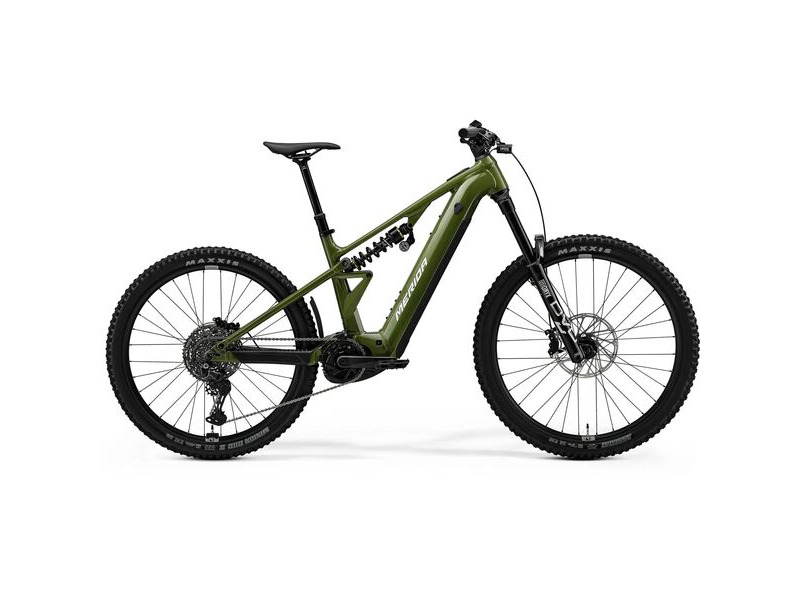

Merida e0ne Eighty FR 600 Ebike 2026
- Tough aluminium frame with 180mm rear wheel travel
- Mullet wheel sizes as standard for fun and agile handling
- Reach-based Agilometer sizing system with long-travel size tuned dropper posts
- DVO Onyx 38 D3 180mm fork
- DVO Jade X D3 coil shock
- Reynolds 309 Enduro Comp rims with tough Maxxis tyres
- Bosch CX motor
- User removable 800Wh battery
(optional 250Wh range extender available)
The ultimate bruiser on a budget? We've take our hardest-hitting e-MTB and fitted it with kit that maximises descending fun, with a coil sprung rear shock, super strong fork and powerful brakes along with big battery Bosch power.
If you live for bike park laps and big mountain shredding, this is the e-MTB for you. We've taken our eOne-Eighty platform and added in a coil sprung DVO rear shock and DVO Onyx fork to boost the descending performance to the limit, without blowing your budget. We've focused on getting powerful brakes from SRAM and tough Reynolds rims wrapped in sticky and strong Maxxis rubber rather than blowing cash on a fancy drivetrain, so you get maximum descending performance for your money.
Specification
Frame
LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5" x 2,6"
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 800 ; 800Wh
Battery Capacity
800Wh
eBike Display
Bosch Purion 200
Charger
Bosch 4A Charger (220-240V)
Shock
DVO Jade X CORE
Fork
DVO Onyx 38 D3; Air, 180mm travel; Tapered; 44mm fork offset
Gears
10
Shifters
Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10
Rear Derailleur
Shimano Cues U6000; GS
Chain
Shimano LG500
Chainset
FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm
Cassette
Shimano Cues LG400; 11-48 teeth; 10 Speed
Front Brake
SRAM DB4 stealth; 4 piston with SRAM CenterLine; 220mm
Rear Brake
SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm
Grip
Merida Expert TR
Handlebar
Merida Expert eTR; 780mm wide
Stem
Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm
Head Set
Acros ICR Merida external neck w/ Blocklock
Pedal
VP VPE-533
Saddle
Merida Comp SL; V-mount; incl. Merida minitool
Seat Post
Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
Wheel Size
29" / 27.5"
Rims
Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5"
Spokes
Black stainless ; black nipples
Front Hub
Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear Hub
Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt
Front Tyre
Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip
Rear Tyre
Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra
Colour
Anaconda Green (White)
Season
2026
Front Light
Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
Rear Light
USB rear Light CG-214RG
Other
Bosch Cable PowerTube Charging Socket 350mm
- Mullet wheel sizes as standard for fun and agile handling
- Reach-based Agilometer sizing system with long-travel size tuned dropper posts
- DVO Onyx 38 D3 180mm fork
- DVO Jade X D3 coil shock
- Reynolds 309 Enduro Comp rims with tough Maxxis tyres
- Bosch CX motor
- User removable 800Wh battery
(optional 250Wh range extender available)
The ultimate bruiser on a budget? We've take our hardest-hitting e-MTB and fitted it with kit that maximises descending fun, with a coil sprung rear shock, super strong fork and powerful brakes along with big battery Bosch power.
If you live for bike park laps and big mountain shredding, this is the e-MTB for you. We've taken our eOne-Eighty platform and added in a coil sprung DVO rear shock and DVO Onyx fork to boost the descending performance to the limit, without blowing your budget. We've focused on getting powerful brakes from SRAM and tough Reynolds rims wrapped in sticky and strong Maxxis rubber rather than blowing cash on a fancy drivetrain, so you get maximum descending performance for your money.
Specification
Frame
LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5" x 2,6"
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 800 ; 800Wh
Battery Capacity
800Wh
eBike Display
Bosch Purion 200
Charger
Bosch 4A Charger (220-240V)
Shock
DVO Jade X CORE
Fork
DVO Onyx 38 D3; Air, 180mm travel; Tapered; 44mm fork offset
Gears
10
Shifters
Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10
Rear Derailleur
Shimano Cues U6000; GS
Chain
Shimano LG500
Chainset
FSA Direct Mount Steel Chainring; 36 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 160mm
Cassette
Shimano Cues LG400; 11-48 teeth; 10 Speed
Front Brake
SRAM DB4 stealth; 4 piston with SRAM CenterLine; 220mm
Rear Brake
SRAM DB4 stealth; 4 piston with SRAM CenterLine; 200mm
Grip
Merida Expert TR
Handlebar
Merida Expert eTR; 780mm wide
Stem
Merida Expert eTR II; material: aluminium; 35mm diameter; 0 degree rise; Supernova mount; length: 40mm
Head Set
Acros ICR Merida external neck w/ Blocklock
Pedal
VP VPE-533
Saddle
Merida Comp SL; V-mount; incl. Merida minitool
Seat Post
Merida Expert TR II; 34.9mm diameter; in-line; XS - 125mm, S - 150mm, M - 170mm, L - 200mm, XL - 230mm seat post travel
Wheel Size
29" / 27.5"
Rims
Reynolds 309 Enduro Comp; 30mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed); front 29"; rear 27.5"
Spokes
Black stainless ; black nipples
Front Hub
Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt
Rear Hub
Novatec SL-Team D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt
Front Tyre
Maxxis Assegai; 29x2.5 "; kevlar bead; TR EXO+ 3C MaxxGrip
Rear Tyre
Maxxis Minion DHR II; 27.5x2.4 "; kevlar bead; 3C DD TR MaxxTerra
Colour
Anaconda Green (White)
Season
2026
Front Light
Lezyne Hekto StVZO E350+ Reverse; reverse Merida Custom Mount
Rear Light
USB rear Light CG-214RG
Other
Bosch Cable PowerTube Charging Socket 350mm
| Model Year | 2026 |
|---|---|
| Options | S / Allow 5-7 days for delivery Anaconda Green Available M / Allow 5-7 days for delivery Anaconda Green Available L / Allow 5-7 days for delivery Anaconda Green Available XL / Allow 5-7 days for delivery Anaconda Green Available |
| Wheel Size | 297 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
