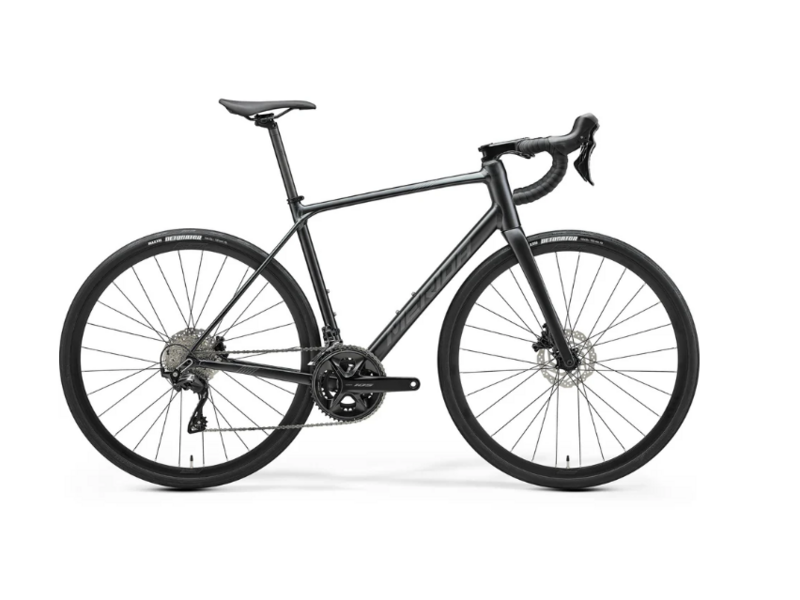

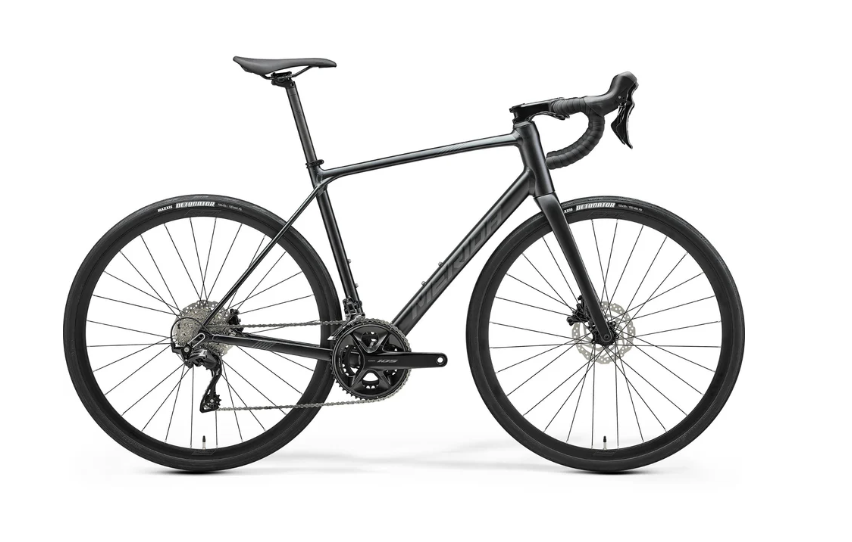

Merida Scultura Advanced 400 2025

Aluminium tarmac endurance bike with Shimano 105 2 x 12 drivetrain and hydraulic disc brakes.
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There's plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

Highlights:
Comfortable, confidence inspiring geometry
Lightweight triple butted 6066 aluminium frame
Full carbon tapered fork
2 x 12 Shimano 105 transmission with Shimano 105 compact chainset
Shimano 105 hydraulic disc brakes
Carbon seat post

-Specification
Frame
Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c (32c with mudguards)

Fork
Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)

Gears
24

Shifters
Shimano 105 disc

Front Derailleur
Shimano 105

Rear Derailleur
Shimano 105; GS

Bottom Bracket
SM-BB71-41B, Pressfit 86.5

Chain
Shimano CN-M6100-12

Chainset
Shimano 105; FCR7100, 50-34 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)

Cassette
Shimano CS-R7101; 11-34 teeth; 12 speed

Brake Lever
Shimano 105

Front Brake
Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor

Rear Brake
Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor

Grip
Merida Expert

Handlebar
Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)

Stem
Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise - Length - 90mm (XXS-XS-S), 100mm (M), 110mm (L-XL)

Head Set
320.52.631

Saddle
Merida Comp SL; V-mount - made with 25% recycled material

Seat Post
Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon

Wheel Size
700c

Rims
Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)

Spokes
Double Butted Black stainless

Front Hub
Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock

Rear Hub
Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock

Front Tyre
Maxxis Detonator; 700 x 32C; Kevlar bead

Rear Tyre
Maxxis Detonator; 700 x 32C; Kevlar bead
Colour

Silk Black/Silver
Season
2025
