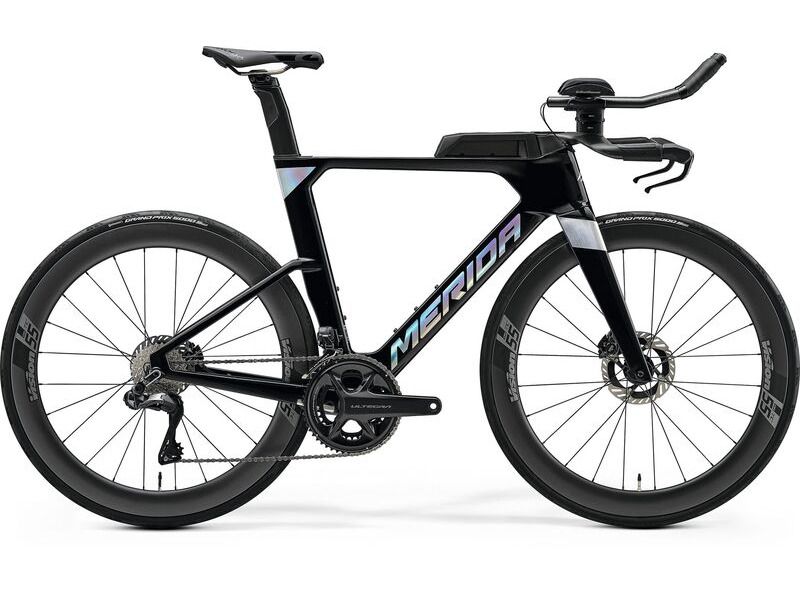

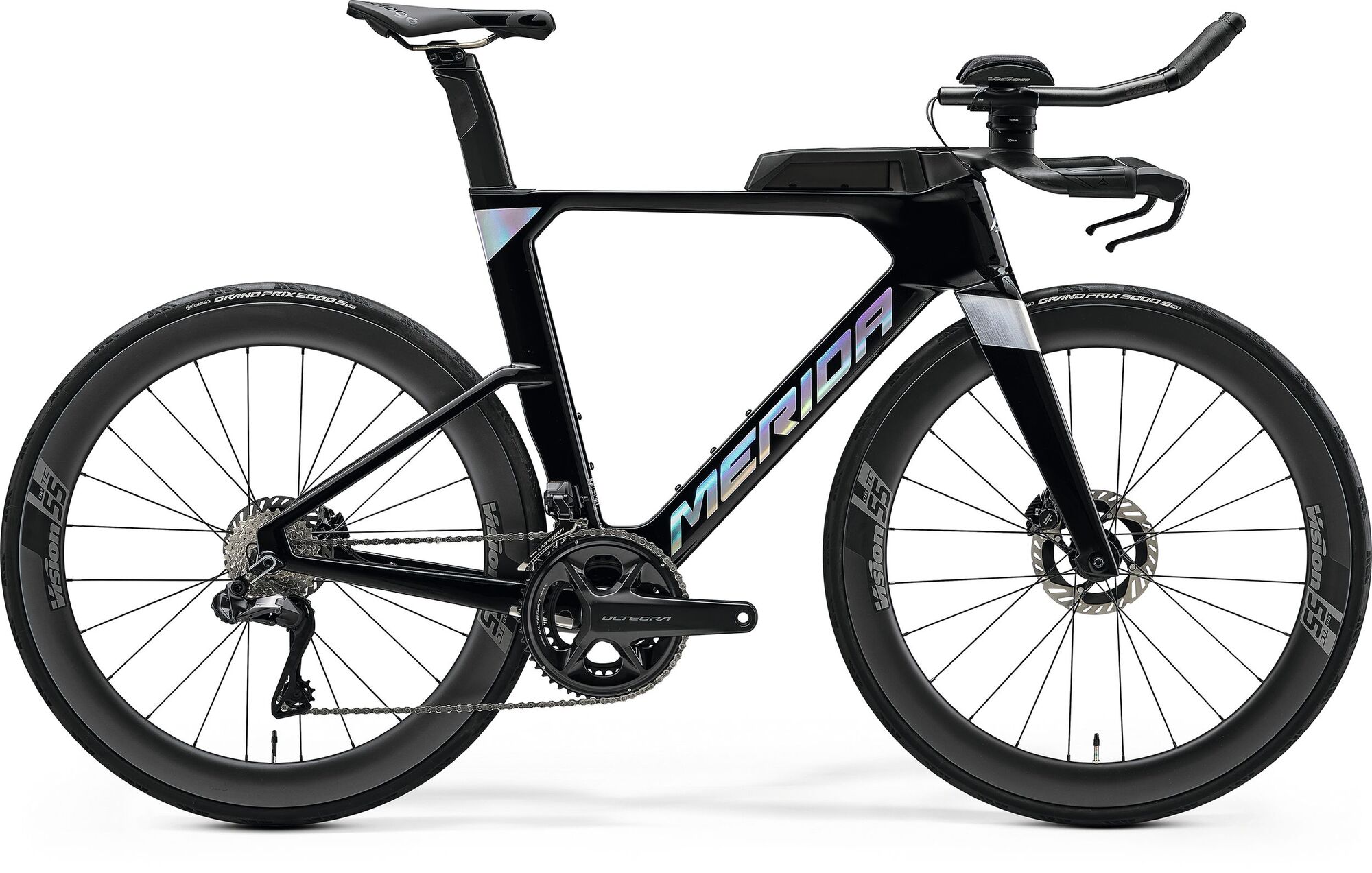

Merida Time Wrap Tri Limited TT Race Bike 2025
Pricing
£6750.00
Finance* from £607.50 per month*subject to status, minimum spend applies
Hover mouse for full example.
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take and what will it cost?
- Price Match
- Can I trade in my Current E-bike towards a new one
Highlights:
Super-light CF5 carbon frame and fork
Shimano Ultegra 2 x12 Di2 drivetrain
Vision Metron TC 55 carbon wheelset
Shimano Dura Ace hydraulic disc brakes
Triathlon specific race bike with superlight carrbon frame, 1 x 12 Ultegra Di2 transmission and Vision Metron TC 55 wheels
A passion project for our legendary R&D Chief Juergen Falke, the Warp Tri drew on many of the aero learnings from the Pro Tour TT bike using a superlight CF5 frame for ultimate performance but incorporated a lot of thinking about comfort and efficiency as Juergen a seasoned Ironman competitor was very aware of the demands of different courses and distances. The Vision Metron S-Bend cockpit allows for multiple position adjustments for a perfect riding position on any course as well as provide outstanding control on even the most demanding of sections.
Specification
Frame
CF5 IV carbon - Premium fibres for lightweight and performance, Internal cable routing, 142 x12mm axle standard, flat mount rear brakes,
Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork
Time-Warp Tri CF5 IV; Full carbon, tapered steerer, Max tyre size: 700 x 30c
Gears
24
Shifters
Shimano ST-R9180
Front Derailleur
Shimano Ultegra Di2; FD-R8150
Rear Derailleur
Shimano Ultegra Di2; RD-R8150
Bottom Bracket
SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M8100-12
Chainset
Shimano Ultegra; 52-36 tooth chainset; Crank length - 170mm (XS), 172.5mm (S/M), 175mm (L)
Cassette
Shimano CS-R8101; 11-30 teeth; 12 speed
Brake Lever
Shimano Dura Ace
Front Brake
Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
Rear Brake
Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 140mm rotor
Grip
Merida Expert
Handlebar
Merida Metron TT; carbon
Stem
Merida Metron TT; carbon; -17 degree rise
Head Set
Meida TIME WARP TT
Saddle
Prologo Zero Tri PAS Tirox
Seat Post
Merida Team TT II; Aero shape; Carbon
Wheel Size
700c
Rims
Part of wheelset - Vision TC55; 19mm inner rim width; 55mm rim depth; carbon; Tubeless ready (tubeless tape and valves not included)
Spokes
Part of wheelset
Front Hub
Part of wheelset - Vision TC55; 100 x 12mm; Centerlock
Rear Hub
Part of wheelset - Vision TC55; 142 x 12mm; Centerlock
Front Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Rear Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Colour
Black
Season
2025
Super-light CF5 carbon frame and fork
Shimano Ultegra 2 x12 Di2 drivetrain
Vision Metron TC 55 carbon wheelset
Shimano Dura Ace hydraulic disc brakes
Triathlon specific race bike with superlight carrbon frame, 1 x 12 Ultegra Di2 transmission and Vision Metron TC 55 wheels
A passion project for our legendary R&D Chief Juergen Falke, the Warp Tri drew on many of the aero learnings from the Pro Tour TT bike using a superlight CF5 frame for ultimate performance but incorporated a lot of thinking about comfort and efficiency as Juergen a seasoned Ironman competitor was very aware of the demands of different courses and distances. The Vision Metron S-Bend cockpit allows for multiple position adjustments for a perfect riding position on any course as well as provide outstanding control on even the most demanding of sections.
Specification
Frame
CF5 IV carbon - Premium fibres for lightweight and performance, Internal cable routing, 142 x12mm axle standard, flat mount rear brakes,
Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork
Time-Warp Tri CF5 IV; Full carbon, tapered steerer, Max tyre size: 700 x 30c
Gears
24
Shifters
Shimano ST-R9180
Front Derailleur
Shimano Ultegra Di2; FD-R8150
Rear Derailleur
Shimano Ultegra Di2; RD-R8150
Bottom Bracket
SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M8100-12
Chainset
Shimano Ultegra; 52-36 tooth chainset; Crank length - 170mm (XS), 172.5mm (S/M), 175mm (L)
Cassette
Shimano CS-R8101; 11-30 teeth; 12 speed
Brake Lever
Shimano Dura Ace
Front Brake
Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
Rear Brake
Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 140mm rotor
Grip
Merida Expert
Handlebar
Merida Metron TT; carbon
Stem
Merida Metron TT; carbon; -17 degree rise
Head Set
Meida TIME WARP TT
Saddle
Prologo Zero Tri PAS Tirox
Seat Post
Merida Team TT II; Aero shape; Carbon
Wheel Size
700c
Rims
Part of wheelset - Vision TC55; 19mm inner rim width; 55mm rim depth; carbon; Tubeless ready (tubeless tape and valves not included)
Spokes
Part of wheelset
Front Hub
Part of wheelset - Vision TC55; 100 x 12mm; Centerlock
Rear Hub
Part of wheelset - Vision TC55; 142 x 12mm; Centerlock
Front Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Rear Tyre
Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
Colour
Black
Season
2025
| Model Year | 2025 |
|---|---|
| Options | XS (Warehouse stock allow 3-8 days for delivery) Black Silver Available S (Warehouse stock allow 3-8 days for delivery) Black Silver Available M (Warehouse stock allow 3-8 days for delivery) Black Silver Available L (Warehouse stock allow 3-8 days for delivery) Black Silver Available |
| Wheel Size | 700c |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
