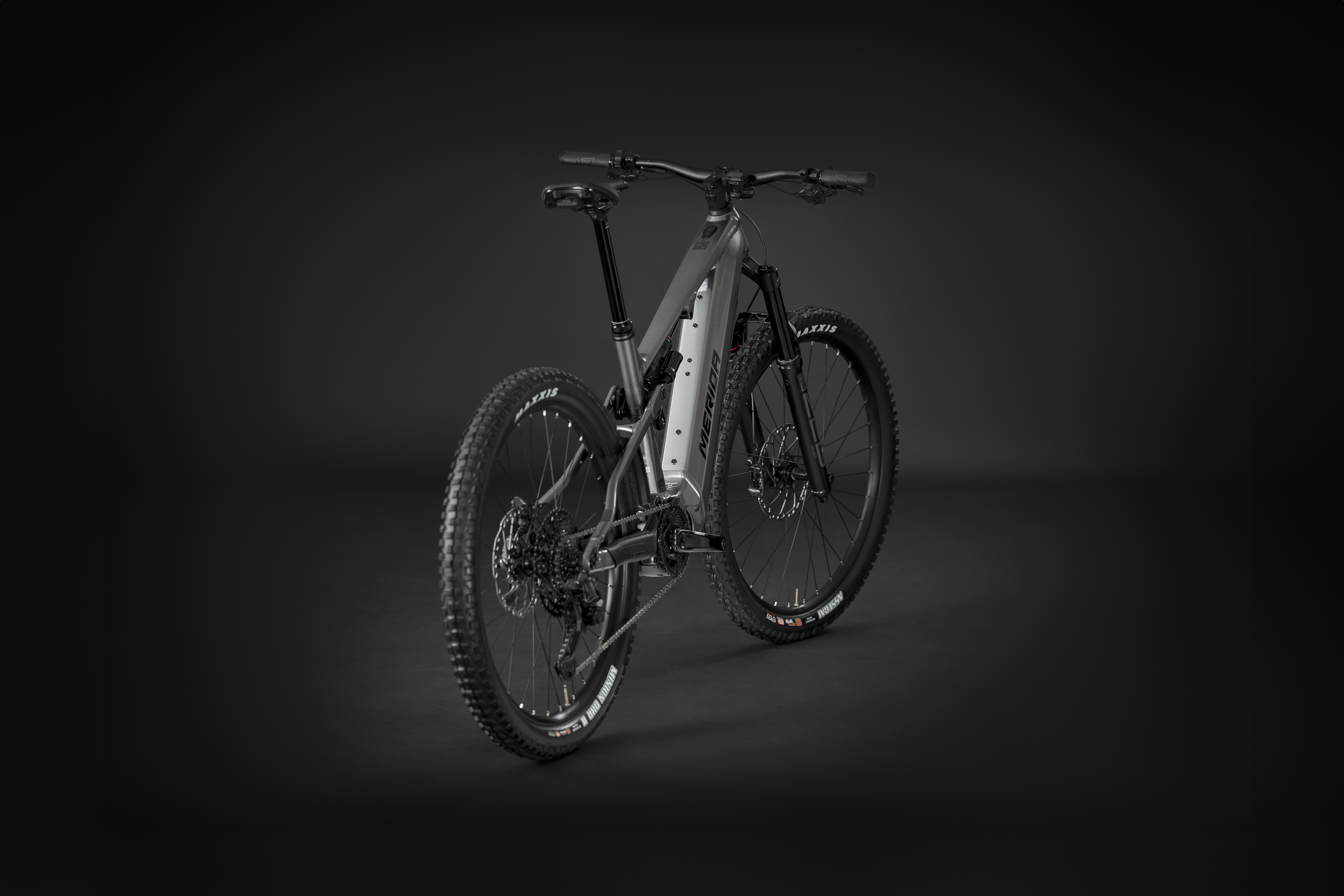

Merida Merida e0ne-Sixty 875 Electric Bike 2024

Merida Merida e0ne-Sixty 875 Electric Bike click to zoom image
Pricing
£5995.00
Offer £5500.00
Finance* from £495.00 per month

*subject to status, minimum spend applies

Hover mouse for full example.
Want 11% Off Merida? Use MERIDA11 at checkout
How long will delivery take and what will it cost?
Price Match
Can I trade in my Current E-bike towards a new one



Merida e0ne Sixty 87






Introducing the all-new eOne-Sixty, where cutting-edge technology meets unrivaled performance to redefine your electric mountain biking experience. Our fourth-generation LITE aluminum frame, boasting 174mm rear wheel travel, sets the stage for the ultimate ride.
Powered by the Shimano EP801 85Nm motor, paired with a removable 750Wh battery, the eOne-Sixty is a lightweight powerhouse. Conquer any trail with confidence, thanks to the Rockshox Zeb fork with 170mm travel and Super Deluxe rear shock. The hardwearing Shimano XT Linkglide drivetrain ensures a smooth and reliable ride, while the Merida tubeless-ready wheelset adds an extra layer of performance.
Embrace versatility with the mixed wheel size as standard, offering the agility of 27.5" and the speed of 29". Want a full 29er setup? No problem, our flip chip design lets you switch seamlessly without compromising on the meticulously designed geometry.
But that's not all ??" the eOne-Sixty is not just about power, it's about endurance. The Shimano Steps EP801 drive unit, combined with the removable 750Wh battery, delivers outstanding battery range. Need more? Opt for the 360Wh range extender, available separately.
Designed for the thrill-seekers, our updated geometry takes inspiration from the award-winning One-Sixty, ensuring superior handling on the toughest climbs and steepest descents. The FAST kinematic suspension system effortlessly tackles every trail challenge, while the low maintenance flexstay suspension provides size-tuned progression for peak performance.
Tailor your ride with the 30-230mm travel-adjustable dropper post, allowing you to choose between a longer frame for stability or a shorter one for agility.
SPECIFICATIONS:

- Frame: Lite IV - Hydroformed 6061 Double butted aluminum with integrated battery

- Motor: Shimano Steps EP801; 85Nm

- Battery: Simplo Trend Power Internal Battery Gen 2; 750Wh

- Fork: Rock Shox ZEB Select; Air; 170mm travel

- Rear Shock: RockShox Super Deluxe Select

- Drivetrain: Shimano XT LinkGlide 11-speed

- Wheel Size: 29" / 27.5"

- Color: Grey/Black

The eOne-Sixty: Elevate your ride, embrace the thrill, and experience the future of electric mountain biking. Welcome to the next descent ??" your journey begins now.



Bike Specification


FRAME
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"

MOTOR
Shimano Steps EP801; 85Nm

BATTERY
Simplo Trend Power Internal Battery Gen 2; 750Wh

BATTERY CAPACITY
750Wh

EBIKE DISPLAY
Shimano SC-EM800

CHARGER
Trend Power Simplo EU Charger; 4A

POWER BUTTON
Shimano satellite system on/off; EWSW310

MODE SWITCH
Shimano SW-EM800-L

SHOCK
RockShox Super Deluxe Select

FORK
Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8"

GEARS
11

SHIFTERS
Shimano XT M8130 and Shimano SL -MT500-IL dropper lever

REAR DERAILLEUR
Shimano XT RDM8130 LinkGlide 11 speed

CHAIN
Shimano LG500

CHAINSET
FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide

CASSETTE
Shimano LG700; 10-50 teeth; 11 speed

BRAKE LEVER
Shimano XT

FRONT BRAKE
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor

REAR BRAKE
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor

GRIP
Merida Expert EC

HANDLEBAR
Merida Expert eTR; 780mm wide; 20mm rise

STEM
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.

HEAD SET
Acros ICR Merida external neck w/ Blocklock

SADDLE
Proxim W400 STN with V-mount adapter; including Merida minitool

SEAT POST
Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

WHEEL SIZE
29" / 27.5"

RIMS
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

FRONT HUB
Shimano XT; 110 x 15mm; 32 spokes; Centerlock

REAR HUB
Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key

FRONT TYRE
Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

REAR TYRE
Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR

COLOUR
Grey/Black

SEASON 2024

FRONT LIGHT
Lezyne Power STVZO E115, reverse Merida Custom Mount

REAR LIGHT
Lezyne LED FEMTO USB REAR STVZO

OTHER
Trend Power On-bike charging cable






Specifications are subject to change without notice.








Geometry



Geometry



Model Year 2024
Options Short (Call For Availability) Grey/Black Available
Mid (Allow 5-7 Days For Delivery) Grey/Black Available
Long (Allow 5-7 Days For Delivery) Grey/Black Available
X Long X Long (Call For Availability) Grey/Black Available
Wheel Size 297
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
