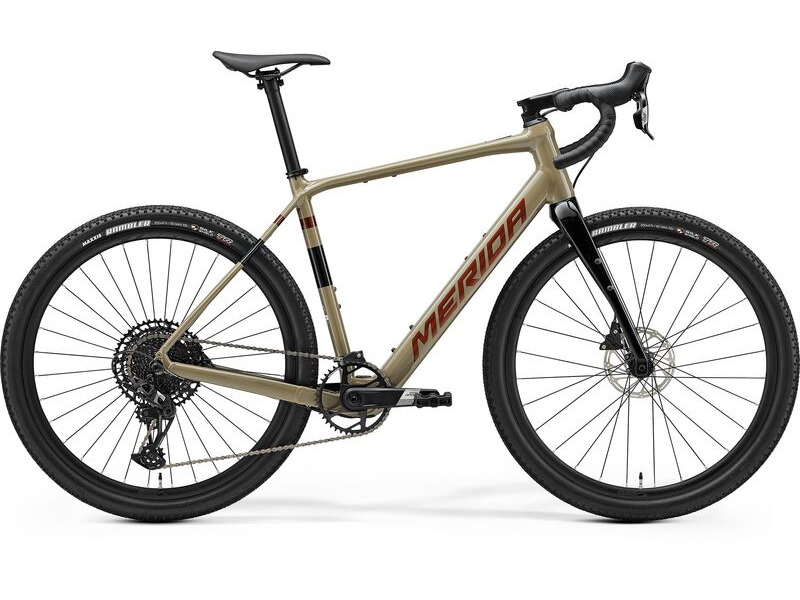

Merida eSilex 600 + Electric Bike 2025
Highlights:
- 650b wheels
- MAHLE ebikemotion 40Nm hub motor
- Integrated 250Wh battery
- Carbon fork
- SRAM Apex 1 x 12 drivetrain
- SRAM Apex hydraulic disc brakes
- 650b+ wheel gravel eBike with SRAM Apex 1 x 12 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh
internal battery.
The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it;s not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat. The eSilex can be run with either 700c or 650b wheels.
Specification
Frame
Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c
Motor
Mahle X30 Hub motor, 40Nm
Battery
Mahle ix250Wh Battery Pack
Battery Capacity
250Wh
Charger
Mahle X30 Charger
Mode Switch
Mahle iWoc ONE
Fork
Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c
Shifters
SRAM Apex
Rear Derailleur
Sram Apex Eagle
Bottom Bracket
Sram DUB BSA 68 Road Wide
Chain
Sram SX Eagle
Chainset
SRAM Apex 1 Wide Crankset; 40 teeth with 170 mm-XS/S/M, 175 mm-L/XL crank and Mr. Control CH-CM1 chain guide
Cassette
SRAM PG-1210; 10-50 teeth; 12 speed
Brake Lever
Sram Apex
Front Brake
SRAM Apex hydraulic disc brake caliper with SRAM Centreline 160mm rotor
Rear Brake
SRAM Apex hydraulic disc brake caliper with SRAM Centreline 160mm rotor
Grip
Merida Expert
Handlebar
Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)
Stem
Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
Head Set
Merida 8158
Pedal
VP Components - VPE-892
Saddle
Merida Comp SL; V-mount including Merida multitool
Seat Post
Merida Expert CC; aluminium; 30.9mm diameter; in-line
Rims
Merida Expert CX; 19mm inner rim width; 24mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Front Hub
Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock
Front Tyre
Maxxis Rambler; 650B x 47c; ShieldWall / TLR
Rear Tyre
Maxxis Rambler; 650B x 47c; ShieldWall / TLR
Colour
Green/Bronze
Season
2025
Front Light
CG-119PG
Rear Light
CG-404RG
- 650b wheels
- MAHLE ebikemotion 40Nm hub motor
- Integrated 250Wh battery
- Carbon fork
- SRAM Apex 1 x 12 drivetrain
- SRAM Apex hydraulic disc brakes
- 650b+ wheel gravel eBike with SRAM Apex 1 x 12 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh
internal battery.
The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it;s not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat. The eSilex can be run with either 700c or 650b wheels.
Specification
Frame
Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c
Motor
Mahle X30 Hub motor, 40Nm
Battery
Mahle ix250Wh Battery Pack
Battery Capacity
250Wh
Charger
Mahle X30 Charger
Mode Switch
Mahle iWoc ONE
Fork
Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c
Shifters
SRAM Apex
Rear Derailleur
Sram Apex Eagle
Bottom Bracket
Sram DUB BSA 68 Road Wide
Chain
Sram SX Eagle
Chainset
SRAM Apex 1 Wide Crankset; 40 teeth with 170 mm-XS/S/M, 175 mm-L/XL crank and Mr. Control CH-CM1 chain guide
Cassette
SRAM PG-1210; 10-50 teeth; 12 speed
Brake Lever
Sram Apex
Front Brake
SRAM Apex hydraulic disc brake caliper with SRAM Centreline 160mm rotor
Rear Brake
SRAM Apex hydraulic disc brake caliper with SRAM Centreline 160mm rotor
Grip
Merida Expert
Handlebar
Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)
Stem
Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
Head Set
Merida 8158
Pedal
VP Components - VPE-892
Saddle
Merida Comp SL; V-mount including Merida multitool
Seat Post
Merida Expert CC; aluminium; 30.9mm diameter; in-line
Rims
Merida Expert CX; 19mm inner rim width; 24mm depth; aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Front Hub
Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock
Front Tyre
Maxxis Rambler; 650B x 47c; ShieldWall / TLR
Rear Tyre
Maxxis Rambler; 650B x 47c; ShieldWall / TLR
Colour
Green/Bronze
Season
2025
Front Light
CG-119PG
Rear Light
CG-404RG
Model Year | 2025 |
---|---|
Options | Large (Warehouse stock, allow 5-8 days for deliver Available |
Wheel Size | 650b |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
