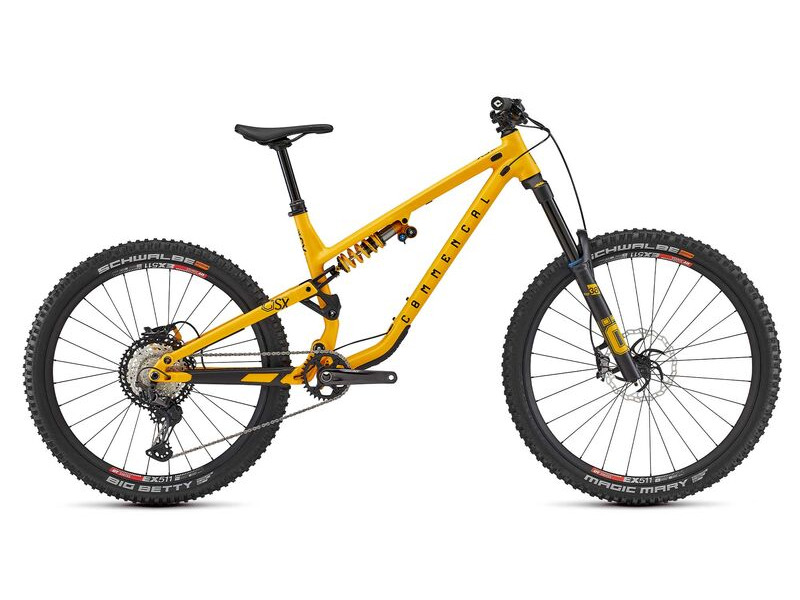

Commencal Meta SX Ohlins Edition
Pricing
£4790.00
Offer £4600.00
- Want 11% Off Merida? Use MERIDA11 at checkout
- How long will delivery take?
- Price Match
- Can I trade in my Current E-bike towards a new one
PLEASE ALLOW 5-10 DAYS FOR DELIVERY
We take care of all custom and importation charges included in the cost. Which means you don't need to worry about any hidden charges.
New META AM 297: Much more than just a facelift!
The switch to a 29-inch wheeled META from 2019 onwards has enabled a significant improvement in performance.
For 2021, we're taking advantage of the experience and knowledge of our EWS riders and numerous tests, to make it even more effective against the clock!
The kinematics have been redesigned to enable a bike that is both more dynamic and more comfortable during suspension travel.
This results in less rider-leg fatigue and essentially the ability to ride the bike optimally towards the end of long race stages.
Thanks to 170mm travel on the front and 160mm on the back, this META AM is an enduro platform designed above all, to go fast for extended periods of time.
With faster-than-ever speed to deal with we decided to alter the geometry.
Lengthened for stability, equipped with a 40mm stem, a short fork offset (42/44mm) and a slacker head angle.
This means handling is not impeded and the bike feels like it has a good sense of direction.
The seat angle is straightened and the offset is reduced for optimised uphill positioning regardless of whether in the saddle or on the pedals.
The stiffness of the frame is always the subject of much attention.
The use of double-row Enduro Bearings allows a more homogeneous deformation of the frame without the loss of stiffness via the bearings.
Aesthetically, the frame has evolved in depth. It's very simple, everything is new!
Notably, the sharper lines highlight improved performance.
The new META AM 29 will therefore delight riders eager for performance and those who like to give it all regardless of the difficulty of the trail before them!
Frame Material Details - 6066 alloy, triple butted T4 and T6 tubes; molded down tube, chainstay, and seatstay protection
Rear Travel - 160mm
Rear Shock - Ohlins TTX22M, coil spring, high/low-speed compression adjust, rebound adjust 230mm x 62.5mm
Spring rates: 343lbs (SM), 388lbs (MD), 434lbs (LG), 480lbs (XL)
Fork - Ohlins RXF36 M.2, air spring, TTX 18 damper, Ramp Up Chamber, high/low-speed compression adjust, rebound adjust, 44mm offset
Fork Travel - 170mm
Head Tube Diameter - Tapered, 1.125 top, 1.5 bottom
Headset - ACROS, ZS44 upper, ZS56 lower, alloy cups, sealed bearings
Handlebar - RIDE ALPHA R27, 7050 alloy, 27mm rise, 780mm width, 31.8mm clamp diameter
Stem - RIDE ALPHA Freeride 40, 31.8mm bar clamp, 40mm length
Grips - RIDE ALPHA DH, ultra-soft compound, single lock-on
Brakes - Shimano Deore XT, 4-piston, Shimano MT900 203mm CENTER LOCK ICE TECHNOLOGY FREEZA rotors
Brake Levers - Shimano Deore XT, I-SPEC EV clamps
Shifters - Shimano Deore XT, 12-speed
Rear Derailleur - Shimano Deore XT, 12-speed
ISCG Tabs - ISCG 05
Cranks - Shimano Deore XT, 170mm length
Chainrings - Shimano Deore XT, 32 tooth, Dynamic Chain Engagement+ Technology
Bottom Bracket - Shimano BBMT800, BB92 press-fit
Chain - Shimano Deore XT, 12-speed
Cassette - Shimano Deore XT, 12-speed, 10-51 tooth
Rims - DT Swiss EX511, 28 hole, 30mm inner width
Hubs - DT Swiss 350, 28 hole, straight-pull, sealed bearings, CENTER LOCK rotor mount, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver and 36 tooth Star Ratchet
Spokes - DT Swiss Competition, straight-pull, 2.0/1.8/2.0 double butted, stainless steel, with Nylok
Tires - Front: Schwalbe Magic Mary, Super Trail, Addix Soft, 29 x 2.4
Rear - Schwalbe Big Betty, Super Trail, Addix Soft, 27.5 x 2.4
Saddle - Fabric Scoop Flat Elite, CrMo rails
Seatpost - KS Lev Integra dropper, Southpaw alloy remote lever
Drop: 125mm (SM), 150mm (MD), 175mm (LG), 200mm (XL)
Seatpost Diameter - 34.9mm
Seatpost Clamp - Single bolt, 38.5mm
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size - 65mm (2.56")
Bottle Cage Mounts - One inside front triangle
Colours - Heritage Green/Dark Green
Warranty - 5 years main frame; 2 years chainstays, suspension contact system and Commencal/RIDE ALPHA components; 6 months paint/decals
Weight - 35 lb 4.4 oz (16,000 g)
Miscellaneous - Double-row Enduro pivot bearings
Internal cable routing
Weight given for size SM without pedals
Frame weight: 4kg (8.81lbs)
Please note spec is subject to change
We take care of all custom and importation charges included in the cost. Which means you don't need to worry about any hidden charges.
New META AM 297: Much more than just a facelift!
The switch to a 29-inch wheeled META from 2019 onwards has enabled a significant improvement in performance.
For 2021, we're taking advantage of the experience and knowledge of our EWS riders and numerous tests, to make it even more effective against the clock!
The kinematics have been redesigned to enable a bike that is both more dynamic and more comfortable during suspension travel.
This results in less rider-leg fatigue and essentially the ability to ride the bike optimally towards the end of long race stages.
Thanks to 170mm travel on the front and 160mm on the back, this META AM is an enduro platform designed above all, to go fast for extended periods of time.
With faster-than-ever speed to deal with we decided to alter the geometry.
Lengthened for stability, equipped with a 40mm stem, a short fork offset (42/44mm) and a slacker head angle.
This means handling is not impeded and the bike feels like it has a good sense of direction.
The seat angle is straightened and the offset is reduced for optimised uphill positioning regardless of whether in the saddle or on the pedals.
The stiffness of the frame is always the subject of much attention.
The use of double-row Enduro Bearings allows a more homogeneous deformation of the frame without the loss of stiffness via the bearings.
Aesthetically, the frame has evolved in depth. It's very simple, everything is new!
Notably, the sharper lines highlight improved performance.
The new META AM 29 will therefore delight riders eager for performance and those who like to give it all regardless of the difficulty of the trail before them!
Frame Material Details - 6066 alloy, triple butted T4 and T6 tubes; molded down tube, chainstay, and seatstay protection
Rear Travel - 160mm
Rear Shock - Ohlins TTX22M, coil spring, high/low-speed compression adjust, rebound adjust 230mm x 62.5mm
Spring rates: 343lbs (SM), 388lbs (MD), 434lbs (LG), 480lbs (XL)
Fork - Ohlins RXF36 M.2, air spring, TTX 18 damper, Ramp Up Chamber, high/low-speed compression adjust, rebound adjust, 44mm offset
Fork Travel - 170mm
Head Tube Diameter - Tapered, 1.125 top, 1.5 bottom
Headset - ACROS, ZS44 upper, ZS56 lower, alloy cups, sealed bearings
Handlebar - RIDE ALPHA R27, 7050 alloy, 27mm rise, 780mm width, 31.8mm clamp diameter
Stem - RIDE ALPHA Freeride 40, 31.8mm bar clamp, 40mm length
Grips - RIDE ALPHA DH, ultra-soft compound, single lock-on
Brakes - Shimano Deore XT, 4-piston, Shimano MT900 203mm CENTER LOCK ICE TECHNOLOGY FREEZA rotors
Brake Levers - Shimano Deore XT, I-SPEC EV clamps
Shifters - Shimano Deore XT, 12-speed
Rear Derailleur - Shimano Deore XT, 12-speed
ISCG Tabs - ISCG 05
Cranks - Shimano Deore XT, 170mm length
Chainrings - Shimano Deore XT, 32 tooth, Dynamic Chain Engagement+ Technology
Bottom Bracket - Shimano BBMT800, BB92 press-fit
Chain - Shimano Deore XT, 12-speed
Cassette - Shimano Deore XT, 12-speed, 10-51 tooth
Rims - DT Swiss EX511, 28 hole, 30mm inner width
Hubs - DT Swiss 350, 28 hole, straight-pull, sealed bearings, CENTER LOCK rotor mount, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver and 36 tooth Star Ratchet
Spokes - DT Swiss Competition, straight-pull, 2.0/1.8/2.0 double butted, stainless steel, with Nylok
Tires - Front: Schwalbe Magic Mary, Super Trail, Addix Soft, 29 x 2.4
Rear - Schwalbe Big Betty, Super Trail, Addix Soft, 27.5 x 2.4
Saddle - Fabric Scoop Flat Elite, CrMo rails
Seatpost - KS Lev Integra dropper, Southpaw alloy remote lever
Drop: 125mm (SM), 150mm (MD), 175mm (LG), 200mm (XL)
Seatpost Diameter - 34.9mm
Seatpost Clamp - Single bolt, 38.5mm
Rear Dropout / Hub Dimensions 12x148mm Boost
Max. Tire Size - 65mm (2.56")
Bottle Cage Mounts - One inside front triangle
Colours - Heritage Green/Dark Green
Warranty - 5 years main frame; 2 years chainstays, suspension contact system and Commencal/RIDE ALPHA components; 6 months paint/decals
Weight - 35 lb 4.4 oz (16,000 g)
Miscellaneous - Double-row Enduro pivot bearings
Internal cable routing
Weight given for size SM without pedals
Frame weight: 4kg (8.81lbs)
Please note spec is subject to change
| Options | M Sold Out L Sold Out Ohlins Edition Yellow XL Sold Out Ohlins Edition Yellow |
|---|---|
| Wheel Size | 29/27.5 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
