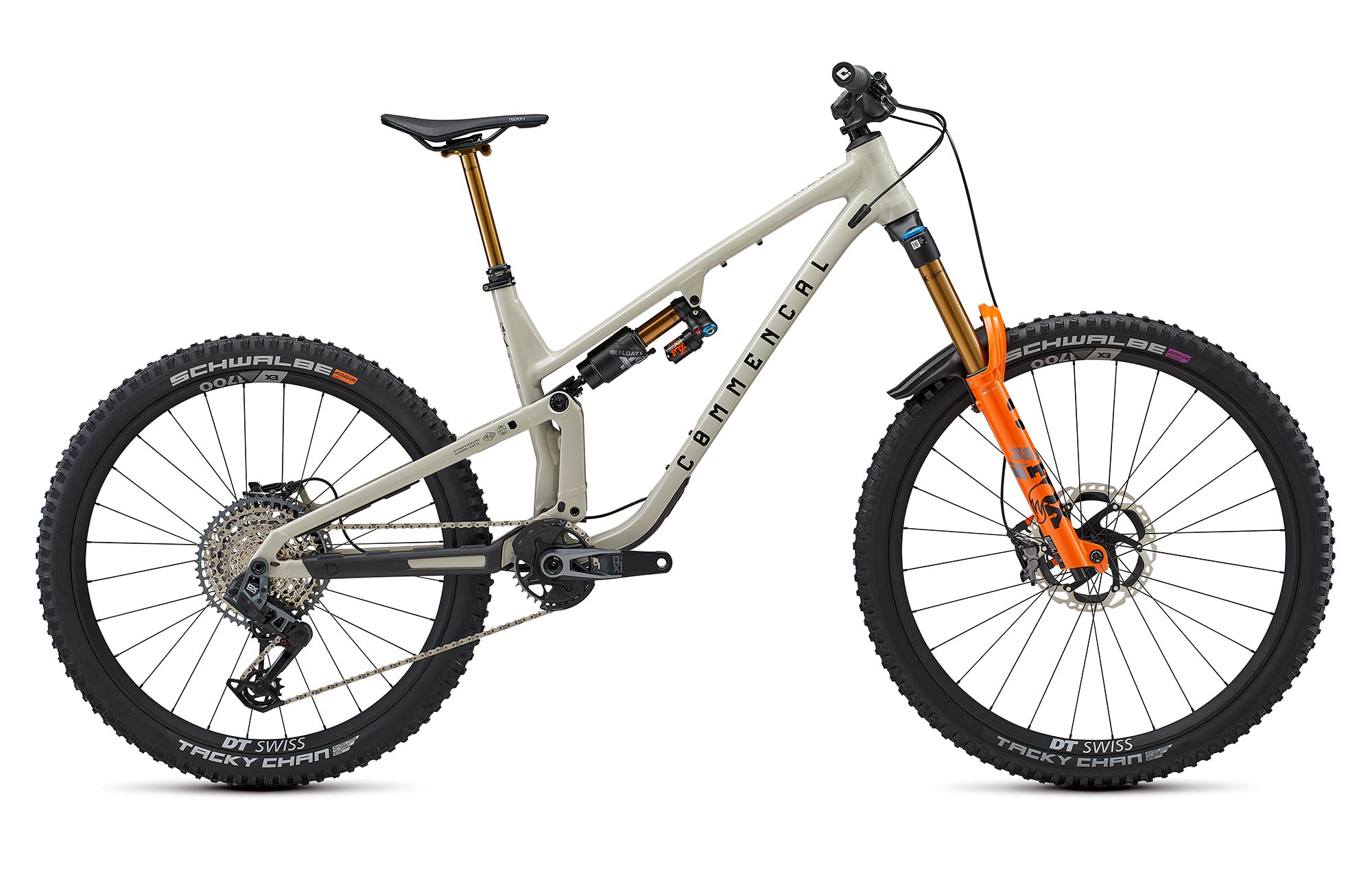

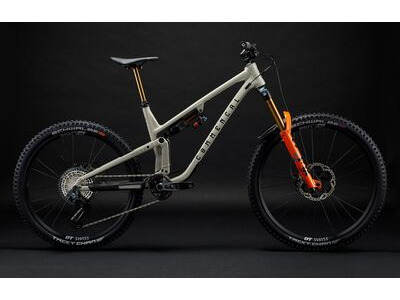

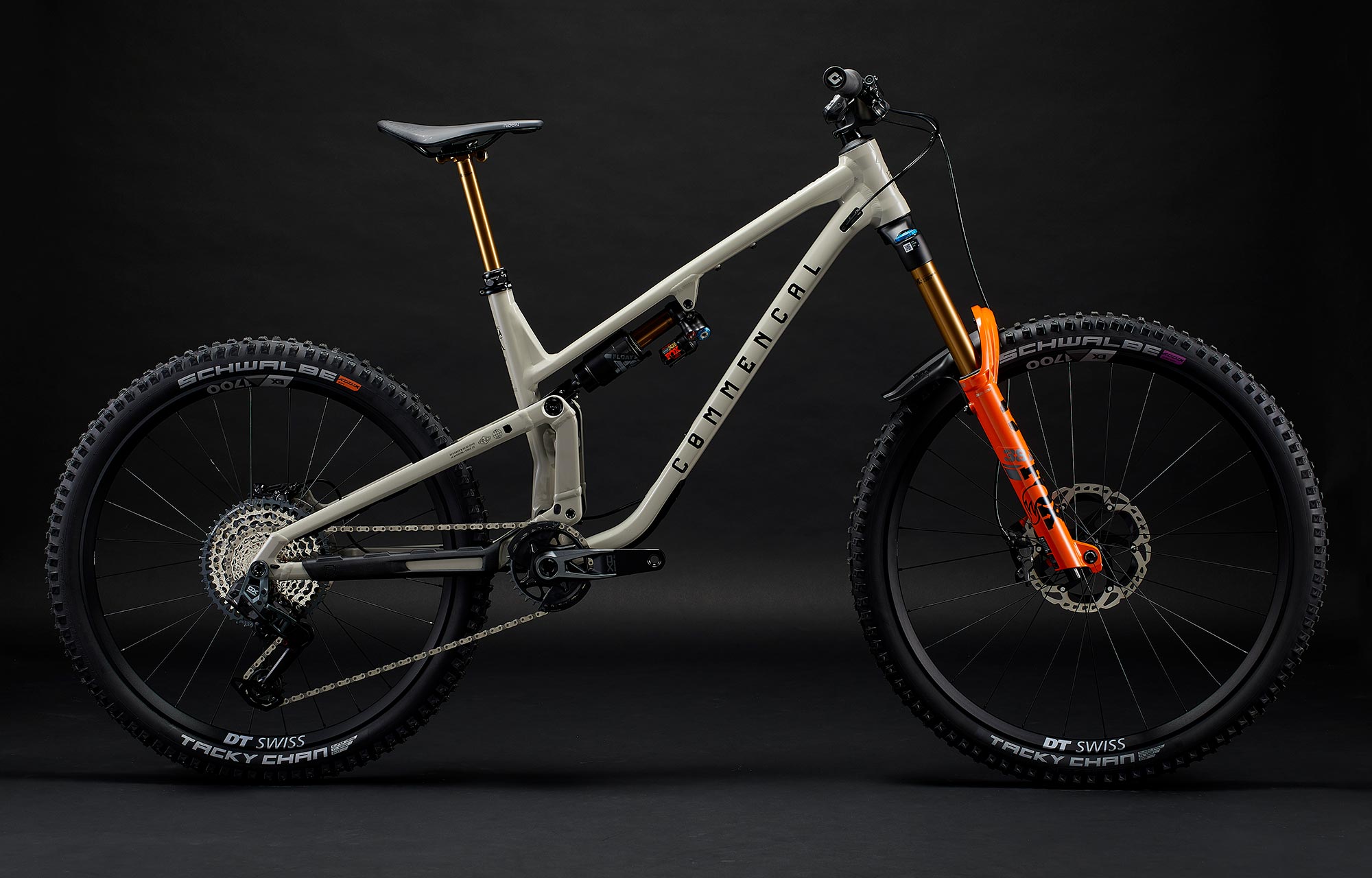

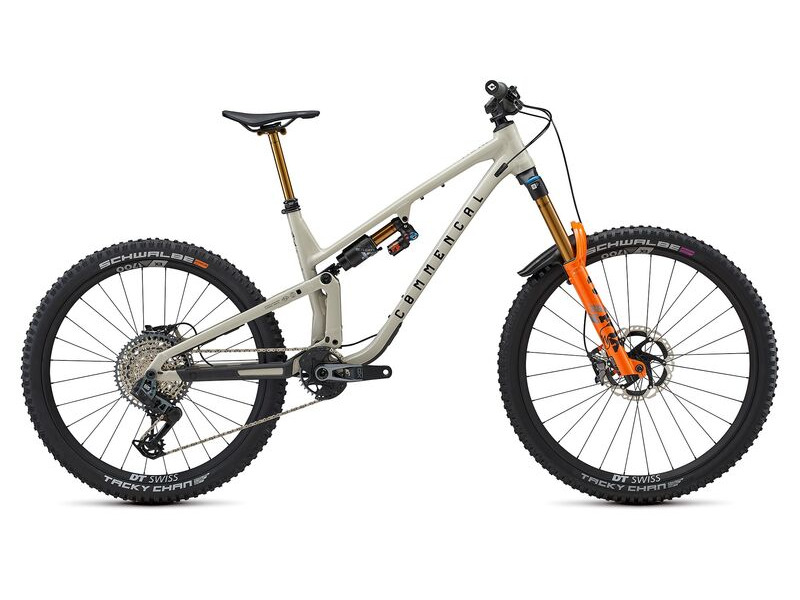

Commencal Meta SX V5 T- Type Chalk 2024

The META SX V5 is driven before its ridden. The 165mm of travel is combined with our new Virtual Contact System (VCS) kinematics. Even more effective, it comes into its own when released in the bike park or on steep trails. This is a bike for riders looking for an enduro bike that feels as close to a DH bike as possible.


META SX V5 T-TYPE CHALK

This META SX V5 takes its name from the very latest SRAM shifting technology and EAGLE TRANSMISSION.

The components are made up from a combination of the new Direct Mount SRAM Eagle transmission groupsets. They offer the most precise shifting and are literally indestructible.

With the 38 Float Factory fork, we offer the best from FOX. A stiff chassis, Kashima anti-friction coated stanchions and GRIP2 cartridge with different hydraulic settings. On the back, the Float X Factory is specially set for the kinematics of the frame and contributes to the dynamism and of the bike. Again, different hydraulic settings to adapt to the terrain and a lock-out lever to climb more efficiently.

We've chosen the best for the cockpit too. For more than 50 years, RENTHAL has manufactured aluminium handlebars and stems that have an excellent reputation, and their reliability is unquestionable.

This model is fitted with DT SWISS EX 1700 wheels. Made form high-end aluminium, they have an ultra-resistant weld, and are assembled by hand in Switzerland.

The wheels are finished with SCHWALBE Magic Mary and Big Betty Super Trail 29/27.5x2.40 tyres, offering the best weight to puncture resistance ratio.

*Please note that bike specs are subject to change without prior notice.


FRAME
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6

SHOCK
FOX Float X2 Factory
230 x 65 mm, HSC, LSC, HSR, LSR, 2-postion adjustment, 0.3 spacer x2

FORK
FOX 38 Factory, 170 mm travel
29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 spacers

HEADSET
ACROS ZS56 / ZS56
Alloy cups, sealed bearings

STEM
RENTHAL 40
40 mm extension, 35 mm

HANDLEBAR
RENTHAL 760 on S - RENTHAL 780 on M / L - RENTHAL 800 on XL
35 mm, 760 mm width, 20 mm rise, Alloy 2014 on S - 35 mm, 780 mm width, 30 mm rise, Alloy 2014 on M / L - 35 mm, 800 mm width, 30 mm rise, Alloy 2014 on XL

GRIPS
ODI Longneck
Soft compound, single clamp, black

BRAKES
SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT905 203 mm, 6-bolt, Ice Technology Freeza

SHIFTERS
SRAM AXS POD
12s

REAR DERAILLEUR
SRAM GX Eagle Transmission
12s

BOTTOM BRACKET
SRAM DUB WIDE
Pressfit

CRANKSET
SRAM X0 Eagle, 165 mm crank arms, DUB, Boost
Double Bash guard with Chain Guide
Chainring: SRAM X0 T-Type Eagle, 32t, T-Type

CHAIN
SRAM GX Eagle Transmission
12s

CASSETTE
SRAM GX Eagle Transmission
12s, 10-52t

RIMS
DT SWISS EX 1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS
DT SWISS 350
Rear: 28h, sealed bearings, 12 x 148 mm,Sram XD, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

SPOKES/NIPPLES
DT SWISS Competition
Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black

TYRES
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
Rear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy

SEAT POST
FOX Transfer Factory
31.6 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm

SADDLE
FIZIK Terra Ridon X5
145 mm width, S-alloy rails

WEIGHT
15,7 kg / 34.61 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED
No

COLOUR
Chalk
Shiny Finish
