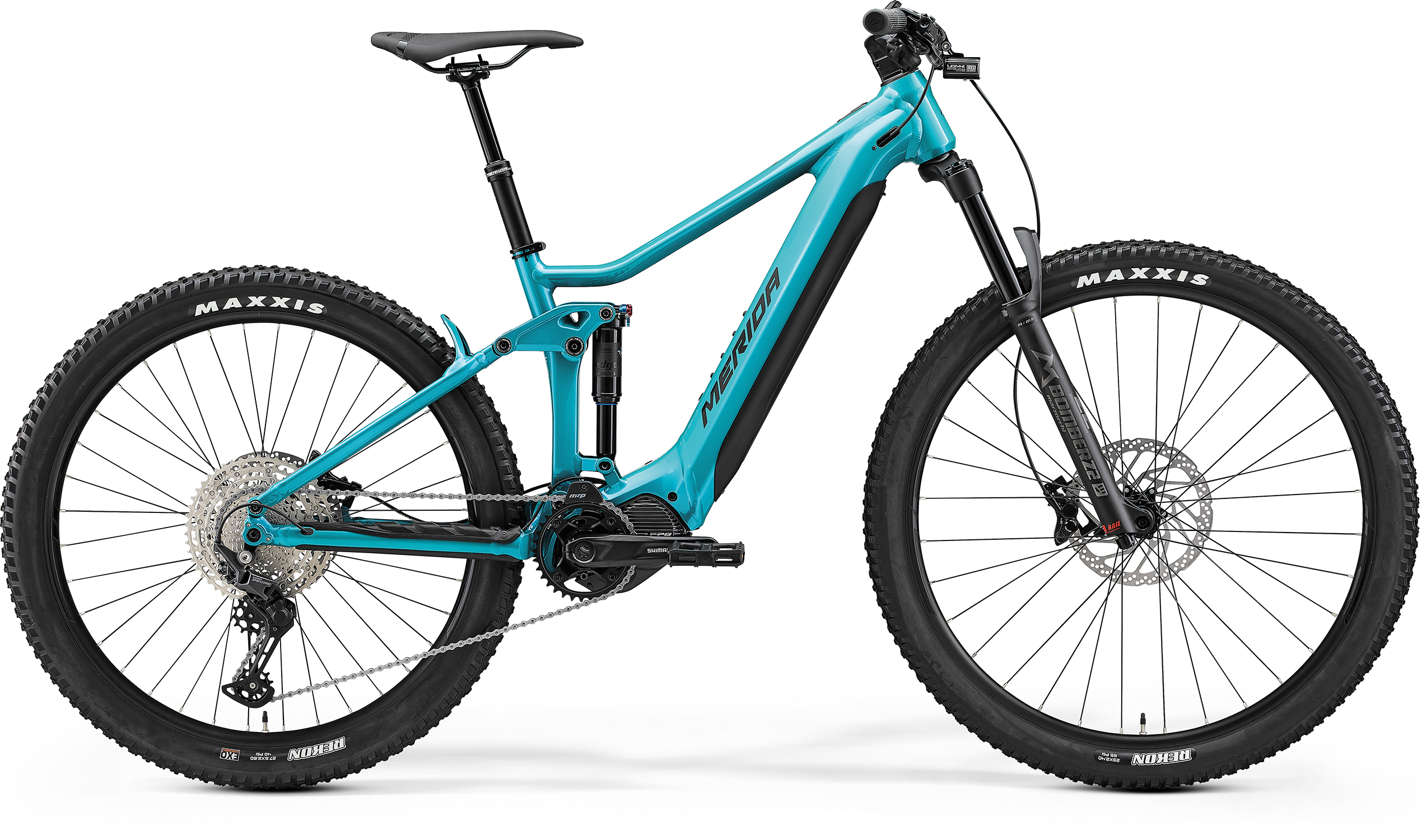

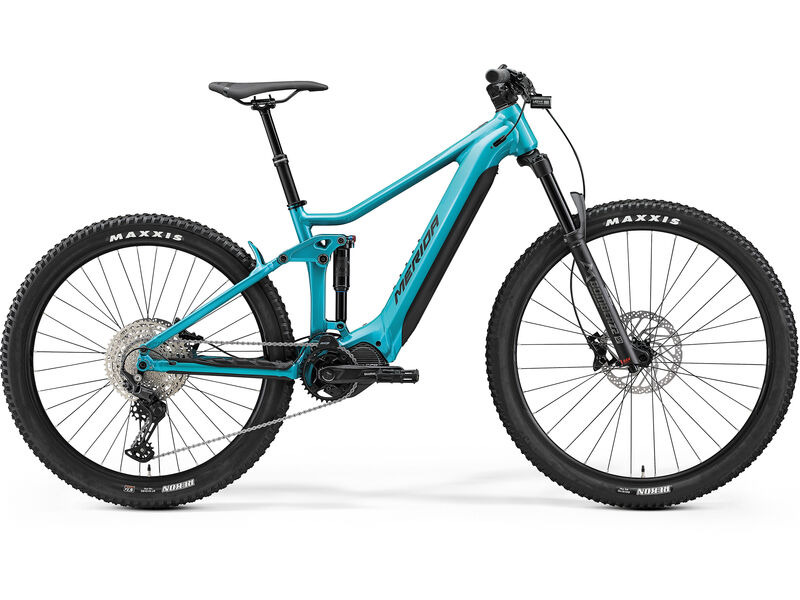

Merida eOne-Forty 500 Electric MTB

Merida eOne-Forty 500 Electric MTB click to zoom image
Pricing
£4650.00
Offer £3300.00
How long will delivery take
How much does delivery cost
Price Match











Merida eOne Forty 500 Electric Bike










The eone-sixty is the headline grabber of the Merida e-bike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!

The eone-forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eone-forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle.

In combination these small changes make the eone-forty more agile and playful; a highly competent climber that's perfect for all day riding.The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, a 29er front wheel with a 2.5 tyre is combined with a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction.

All eone-forty models use the powerful Shimano ep8 85nm motor and bigger 630wh battery (with the exception of frame size - s which uses 504wh). Shimano's e-tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising

Frame: Lite III - Hydroformed 6061 double-butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
Rear Shock: Suntour RS-Edge-TR-LO-R8-M6; lockout
Fork: Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6"
Headset: Merida-8152
Stem: Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
Handlebar: Merida Expert eTR; 780mm wide; 20mm rise
Tape/Grip: Merida Expert EC
Brake Lever: Shimano M4204
Front Brakes: Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor
Rear Brakes: Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RTEM300; 203 mm rotor
Rear Derailleur: Shimano Deore RDM5100 11
Shifters: Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
Chain: KMC e11S EPT
Crankset: Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
Cassette: Shimano M5100 11-51 teeth 11 speed
Rims: Merida Comp TR; 29mm inner rim width; Aluminium
Spokes: Black stainless
Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Center lock
Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
Front Tyre: Maxxis Rekon; 29" x 2.4"; Dual; wire bead
Rear Tyre: Maxxis Rekon; 27.5" x 2.6"; EXO; wire bead
Pedals: VP Components, VPE-537
Saddle: Merida Comp SL; V-mount
Seatpost: Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
Motor: Shimano EP8 85Nm
Battery: Shimano E8036 630Wh
Charger: Shimano EC-E6002 2A charging current
Display: Shimano SC-E5003A

Please Note ??" Whilst we endeavour to provide up to date information, manufacturer specifications and designs can change without prior notice.






Sizing



Geometry

Options L (Please Allow 3-6 Days For Delivery) Teal / Black Available
XL (Please Allow 3-6 Days For Delivery) Teal / Black Available
Wheel Size 297
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
