Merida e0ne Forty 700 2023

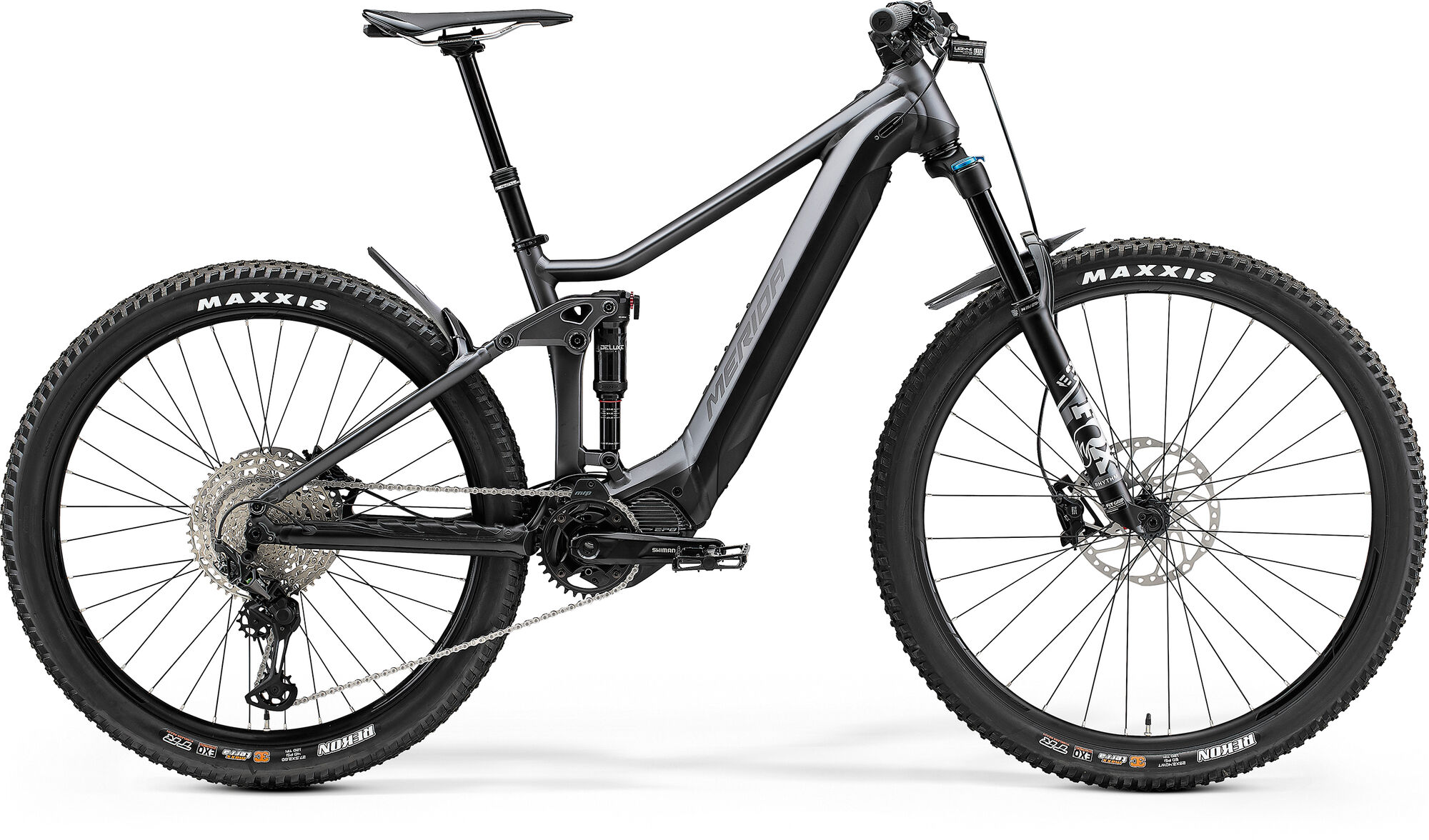

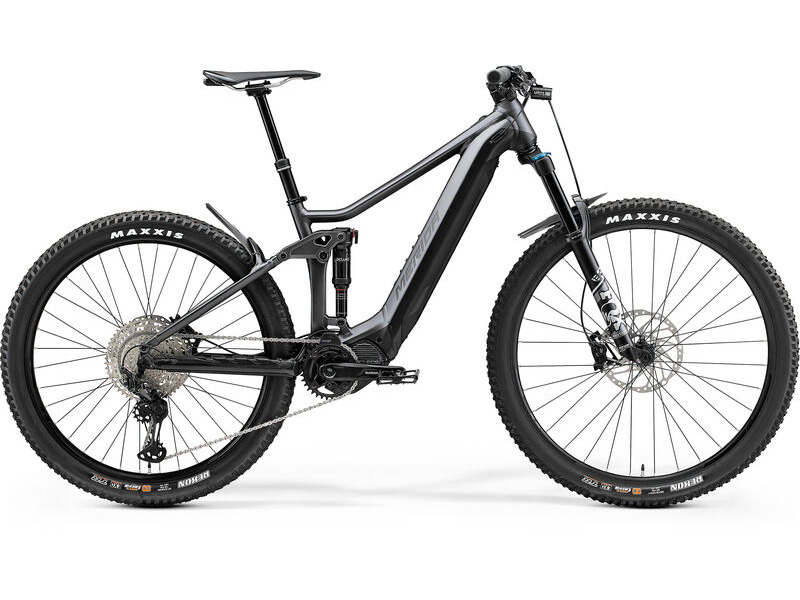

Merida e0ne Sixty 700 Grey/Black Electric Bike
High spec aluminium full suspension eBike. 630Wh battery and 85Nm Shimano EP8 motor. FOX Rhythm 34 Float 140mm fork, RockShox Deluxe Select + shock. Shimano SLX and XT componentry.
The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding. The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction. All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh). Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Bike Specification
FRAME - eONE-FORTY LITE III
FORK - FOX Rhythm 34 Float eMTB+
SHOCK -Rock Shox Deluxe Select+
BRAKES -Shimano SLX
ROTORS -Shimano RT64 / Shimano RTEM600
HEADSET -MERIDA 8152
HANDLEBAR -MERIDA EXPERT eTR
HANDLEBAR STEM -MERIDA EXPERT eTRII
GRIP -MERIDA EXPERT EC
DERAILLEUR (R) -Shimano XT RDM8100 Shadow+ 12
SHIFTERS -Shimano SL -MT500-IL / Shimano Deore M6100
SEAT POST -MERIDA EXPERT TR
SEAT CLAMP -MERIDA EXPERT
SADDLE -MERIDA EXPERT CC
PEDAL -VP VPE-527
CHAIN -KMC e12T EPT
CHAINWHEEL -Shimano CRE80-12-B
CRANK -Shimano FCEM600
FREEWHEEL -Shimano M6100
HUBS -Shimano SLX
RIM -MERIDA EXPERT TR
TYRE FRONT -Maxxis Rekon, 29x2.4", 3C EXO MaxxTerra
TYRE REAR -Maxxis Rekon, 27.5x2.6", 3C EXO MaxxTerra
AXLES -MERIDA EXPERT TR
SPOKES -Black stainless
LIGHT FRONT -Lezyne E-Bike Power E115
LIGHT REAR -Dlight CG-214RG
FENDER -C093-02F + C093-02R
DRIVE UNIT -Shimano EP8, 85nm
BATTERY -Shimano E8036 630Wh / Shimano E8035 504Wh for S only
DISPLAY -Shimano SC-E7000
MAX RIDER WEIGHT -140 kg
Specifications are subject to change without notice.
Geometry
Model Year | 2023 |
---|---|
Options | M (Allow 4-6 Days For Delivery) Grey/Black Available XL (Allow 4-6 Days For Delivery) Grey/Black Available |
Wheel Size | 297 |
