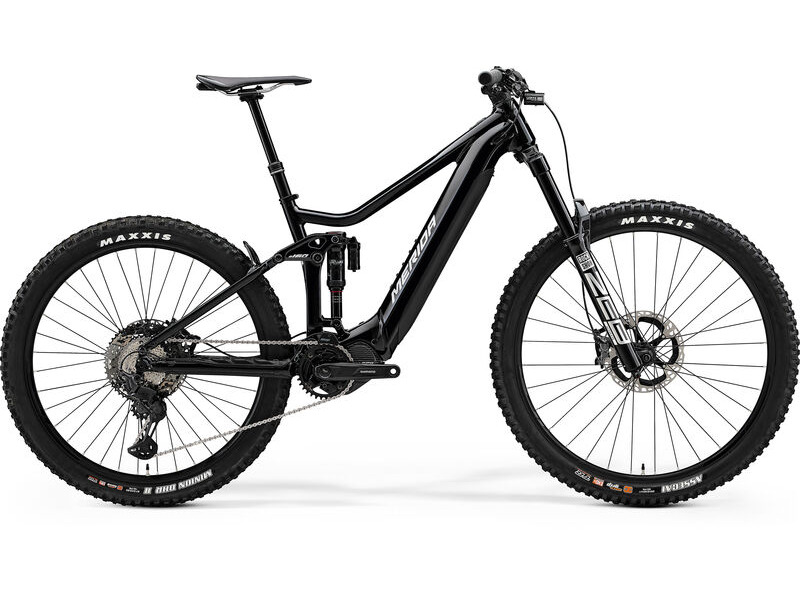

Merida eOne-Sixty 975 SE - Black/Silver 2024

Merida eOne-Sixty 975 SE - Black/Silver click to zoom image
Pricing
£5950.00
Offer £4750.00
Finance* from £427.50 per month

*subject to status, minimum spend applies

Hover mouse for full example.
How long will delivery take
How much does delivery cost
Price Match









Merida eOne Sixty 975 Electric MTB






All action 750wh powered aluminium full suspension eBike with 85Nm Shimano Steps EP801 motor and. RockShox Suspension, Shimano XT hubs, hydraulic brakes and 11 speed drivetrain.

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and "regular bike" geometry. To give the e-full suspension bikes precise steering, fantastic 'rolling over obstacles' behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.





Bike Specification



FRAME - Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Trend Power Simplo EU Charger; 4A
POWER BUTTON - Shimano satellite system on/off; EWSW310
MODE SWITCH - Shimano SW-EM800-L
SHOCK - RockShox Super Deluxe Select+
FORK - Rock Shox ZEB Ultimate; Air; 160mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.8"
GEARS - 11
SHIFTERS - Shimano XT M8130 and Shimano SL -MT500-IL dropper lever
REAR DERAILLEUR - Shimano XT RDM8130 Shadow+ 11 speed
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - Shimano CRE80-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE - Shimano LG700; 10-50 teeth; 11 speed
BRAKE LEVER - Shimano XT
FRONT BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-MT900 203mm rotor
REAR BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida-8152
PEDAL - VP Components - VPE-527
SADDLE - Proxim W400 T2.0 with V-mount adapter; including Merida minitool
SEAT POST - Merida Expert TR; 30.9mm diameter; in-line; XS 100mm - S 125mm - M/L 150mm - XL 170mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Black stainless
FRONT HUB - Shimano XT; 110 x 15mm; 32 spokes; Centerlock
REAR HUB - Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - Lezyne LED FEMTO USB REAR STVZO
OTHER - Simplo On-bike charging cable



Specifications are subject to change without notice.






Geometry



Merida eone sixty ebike








Model Year 2024
Options S (Allow 5 Days For Delivery) Black / Silver Available
M (Allow 5 Days For Delivery) Black / Silver Available
L (Allow 5 Days For Delivery) Black / Silver Available
XL (Allow 5 Days For Delivery) Black / Silver Available
Wheel Size 297
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
