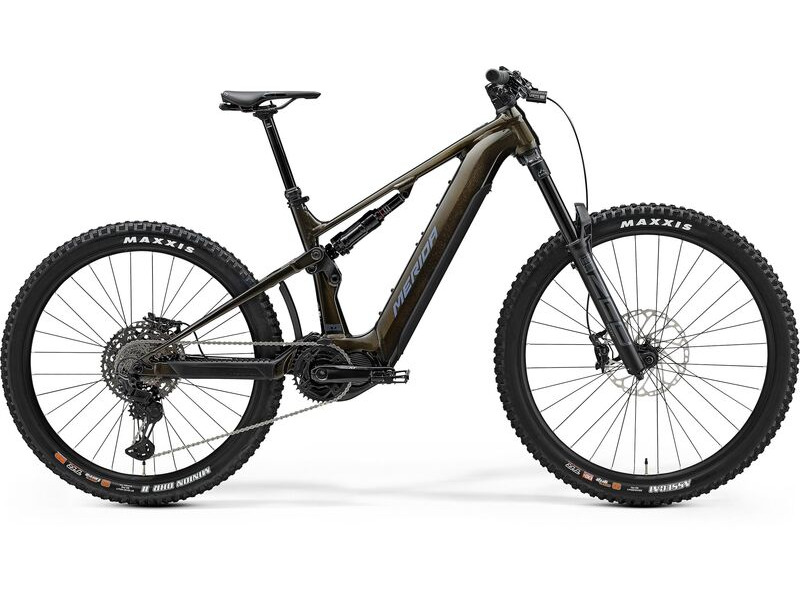

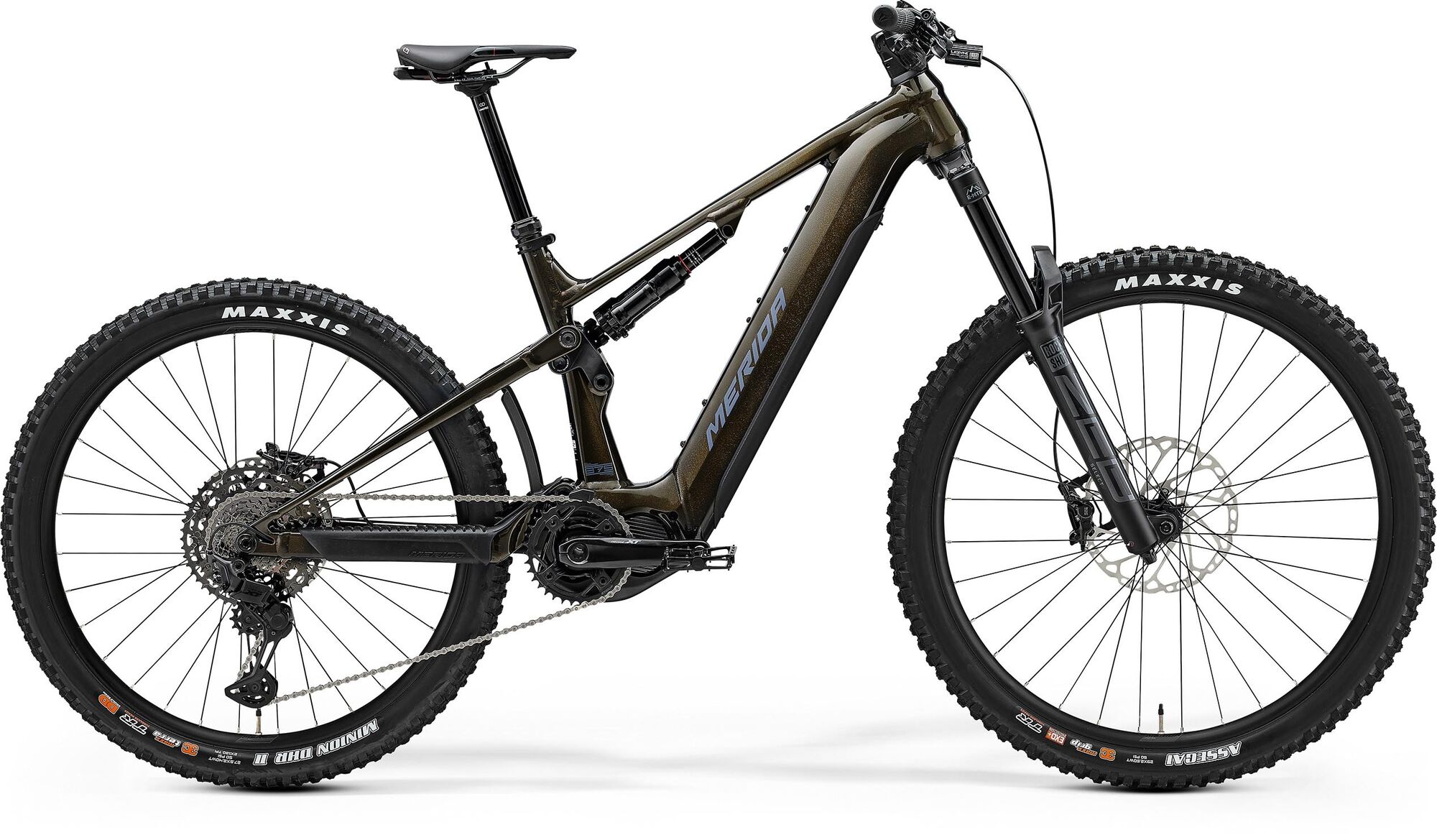

Merida eOne-Sixty 875 - Gold/Grey - MY25 2025

Our LITE aluminium frame is equipped with a Shimano Steps 85Nm EP801 motor and a removable 750 Wh battery RockShox Zeb fork with 170mm travel and Super Deluxe shock Hard wearing Shimano LinkGlide componentry Maxxis tyres and a tubeless ready mullet wheelsetWith the new eOne-Sixty the next descent is always about to start. Our aluminium frame offersgreat value and maximum battery range thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery. A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Our capable uodated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents. Our proven FAST kinematic suspension will take care of anything the trail throws at it. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Our flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails. Thanks to our 30-230 mm travel-adjustable dropper post you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Frame
Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"

Motor
Shimano EP801; 85Nm

Battery
Trendpower Internal Battery Gen 2; 750Wh

Battery Capacity
750Wh

eBike Display
Shimano SC-EM800

Charger
Trendpower EU Smart Charger; 4A

Mode Switch
Shimano SW-EM800-L

Shock
RockShox Super Deluxe Select

Fork
RockShox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.8"

Gears
11 Speed

Shifters
Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter

Rear Derailleur
Shimano XT RDM8130 LinkGlide 11

Bottom Bracket
Part of Shimano Steps motor

Chain
Shimano LG500

Chainset
FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide

Cassette
Shimano LG700; 10-50 teeth; 11 Speed

Brake Lever
Shimano XT

Front Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor

Rear Brake
Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor

Grip
Merida Expert EC

Handlebar
Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise

Stem
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes

Head Set
Acros ICR Merida external neck with Blocklock

Pedal
VP VPE-527

Saddle
Proxim Nembo Steel; V-mount adapter; including Merida minitool

Seat Post
Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

Rims
Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"

Spokes
Black stainless

Front Hub
Shimano XT; 110x15mm; 32 spoke; Centerlock

Rear Hub
Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key

Front Tyre
Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip

Rear Tyre
Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra

Colour
Gold/Grey

Season
2025

Front Light
Lezyne E-BIKE POWER STVZO E115,

Rear Light
Lezyne LED FEMTO USB REAR STVZO
